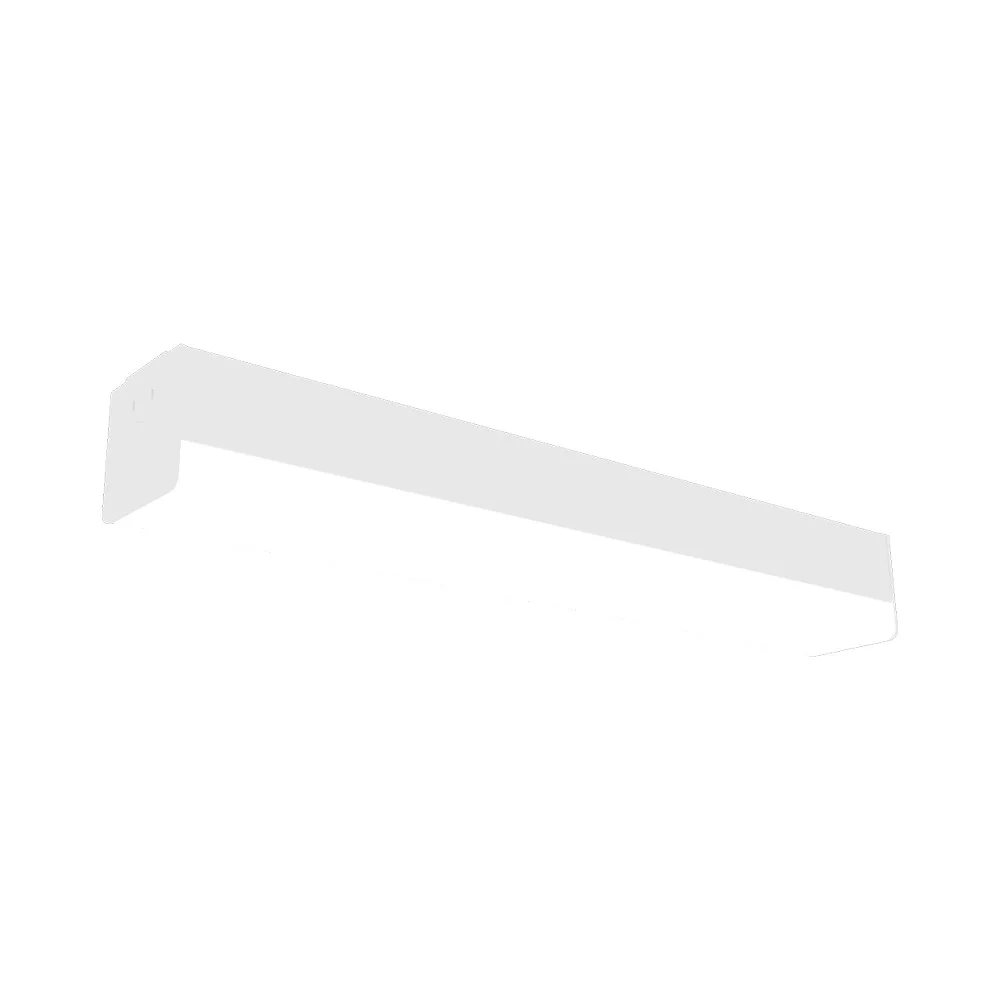

4′ Discovery Linear Strip with selectable color temperature 4000K, adjustable lumen output of 2000 lumens.
Key Features and Benefits
- Highly Configurable BAA Spec Grade Strip Luminaire
- Sleek injection-molded endcap design with No Knockout end cap option
- No visible fasteners providing a smooth uninterrupted design
- Precision Designed Low UGR Curved & Flat Frosted Acrylic Lens options – IK06 Impact Rate
- High Performance Narrow or Wide Distribution Optics
- White (Std.) and optional Black, Silver, or Custom Finishes
- Sleek Integrated Wireless Grouping Control Options
- Surface, Cable, Suspension, Pendant, & Wall Mounting Options
- Asymmetrical & Symmetrical White Reflector Options
- 2ft, 4ft & 8ft Lengths available
- 18 Lumen Packages Ranging 2,000L – 20,000L
- Standard Efficacy (SE) and High Efficacy (HE) Lumen Packages
- 3000K, 3500K, 4000K, and 5000K CCT options available
- 80 or 90 CRI
- 120-277V & 347V 0-10V, Bi-Level & Line Voltage Driver Options
- 0-10V Dimmable Driver (100% -10%)
- L90>54,000 hrs
- -4°F to 122°F Ambient Temperature Range
- 5 Year Warranty (std); 10 Year Warranty Optional
- ETL Listed for Dry and Damp Locations
Specifications
- Steel housing body for rigidity, durability, and ease of installation
- Injection molded end caps provide sleek and robust design
- End caps available with knockouts or No End Cap Knockout Options (NEKO)
- Power access plate mounted on back of fixture for easy access to wiring
- Class 2 LED light engine for high efficacy and long life
- Calculated L70 > 100,000 hrs and L90 > 54,000 hrs
- Power Factor > 0.90. THD < 20%
- Standard 120-277 Vac 0-10V dimmable (10%-100%) with optional 347 Vac High Voltage
- Optional emergency battery backups, generator transfer device, and UL924 devices available
Common Uses
Offices, Education, Storage Facility, Garages, Retail, Warehouses, Distribution Centers, Grocery Stores, Healthcare, Hallways
