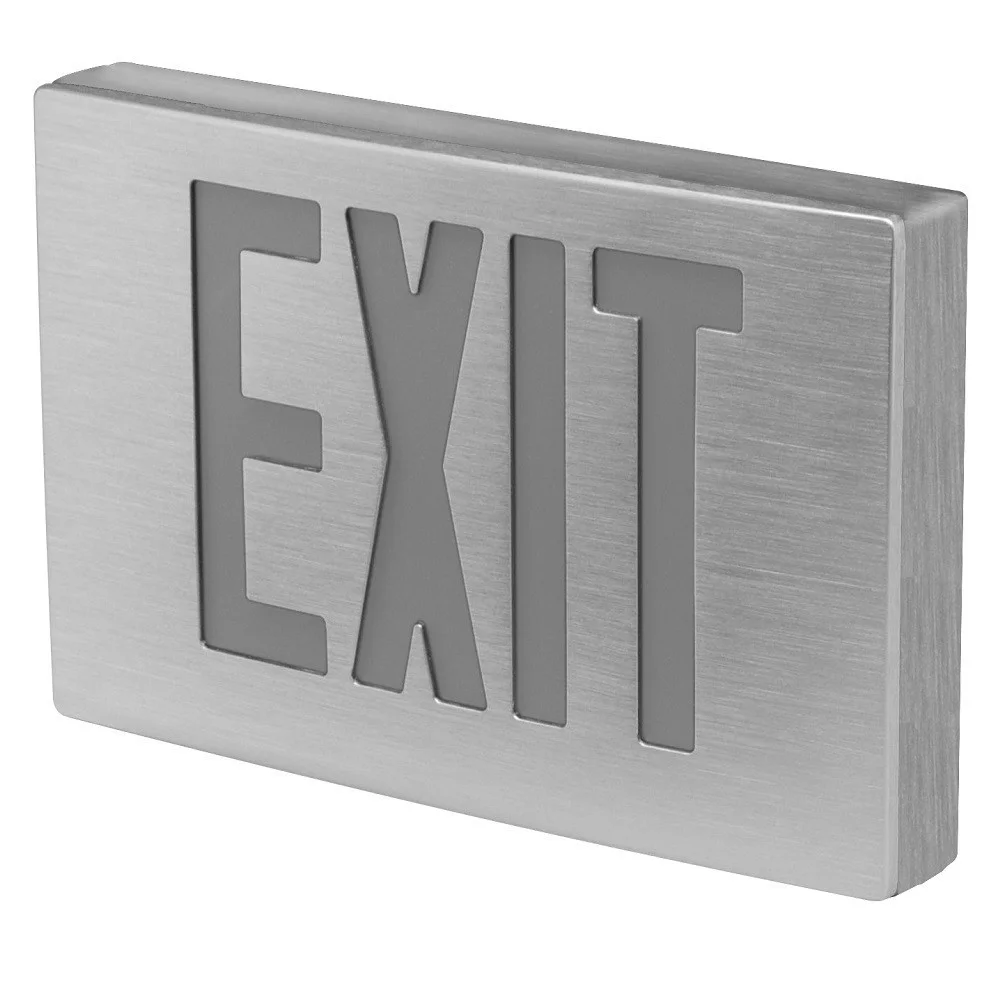

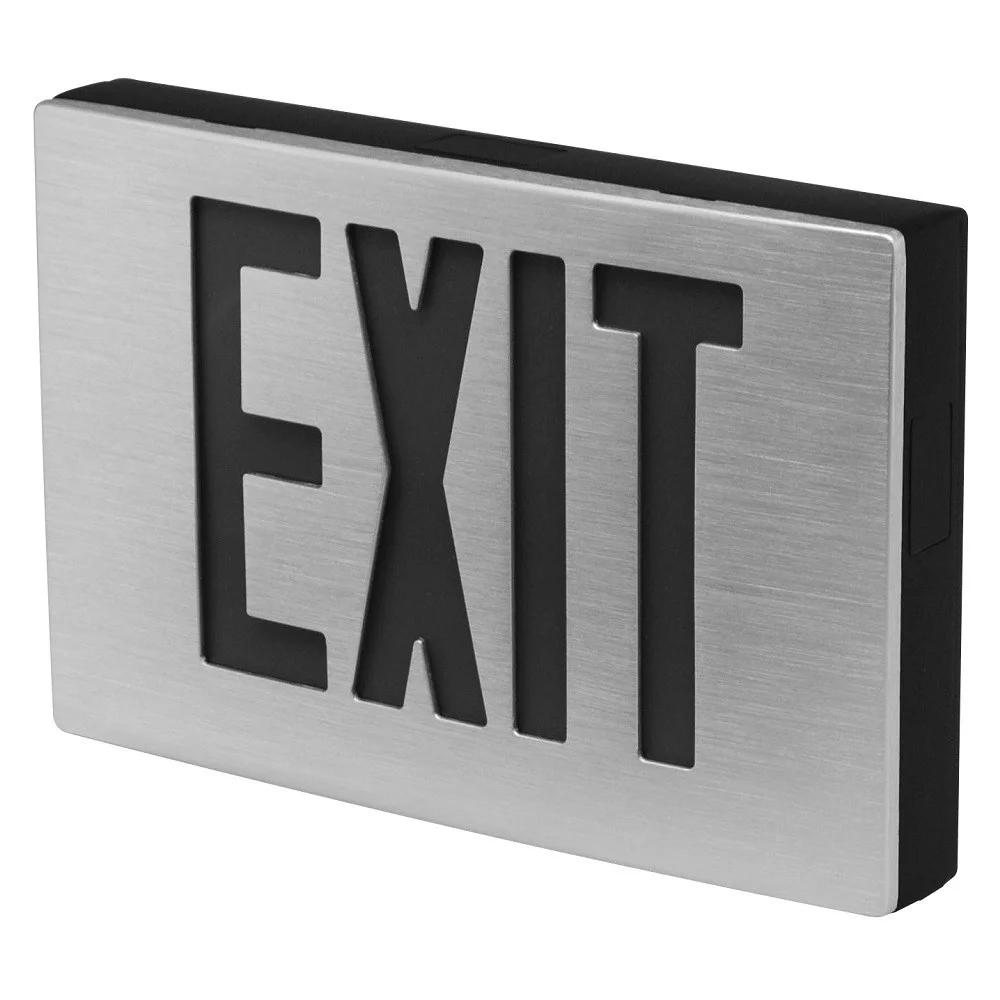

Compact single face die-cast aluminum exit sign with selectable red or green LEDs, featuring battery backup for reliable emergency illumination.
Key Features and Benefits
- Ultra bright, energy efficient, long life Red or Green LEDs
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only)
- Internal solid-state transfer switch for 90-minute emergency illumination
- Fully automatic solid-state, two rate charger
- Premium-grade, die-cast aluminum housing available in black, white, or aluminum finishes
- Field selectable knockout Chevron directional indicators
- Quick-snap face plate closure
- Self-diagnostic feature for reliable operation
- UL Listed for damp locations (0°C – 50°C)
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
Specifications
- Dual 120/277 voltage
- Input Wattage: 6.3W at 120V, 2.3W at 277V
- Dimensions: 9” x 5½” x 2”
- Five year warranty on all electronics and housing
Common Uses
Ideal for use in commercial, industrial, and residential buildings to ensure safe emergency exit in case of power failure.
