Compact size emergency exit sign combo featuring adjustable ultra-bright white LED lamp heads and red LED exit sign illumination. The ESC03 series offers a reliable solution for emergency lighting with a sleek design and versatile mounting options.
Key Features and Benefits
- Adjustable long-lasting, efficient ultra-bright white LED lamp heads
- High performance chrome-plated metallized reflector and plastic lens for optimal light distribution
- Long-lasting, energy-efficient red LED exit sign illumination
- 120V-277VAC input with built-in rechargeable Ni-Cad battery
- Automatic solid-state transfer switch for 90-minute emergency illumination
- EZ-snap mounting canopy for top or end mount
- Injection-molded, flame retardant, high-impact resistant thermoplastic housing
- UL 94v-0 flame rating and UL listed for damp locations
Specifications
- Voltage: 120V-277VAC
- Lumens: 200 lumens
- Wattage: 2 x 1.2W lamp heads
- Remote load capability: Up to 2W

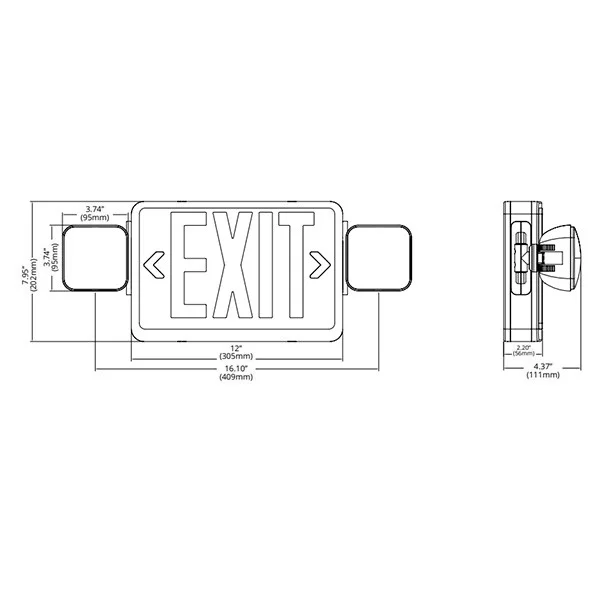

- Dimensions: 12” x 16.10” x 2.20”
Common Uses
Ideal for commercial and industrial settings, providing reliable emergency lighting in corridors, stairwells, and exit paths.
