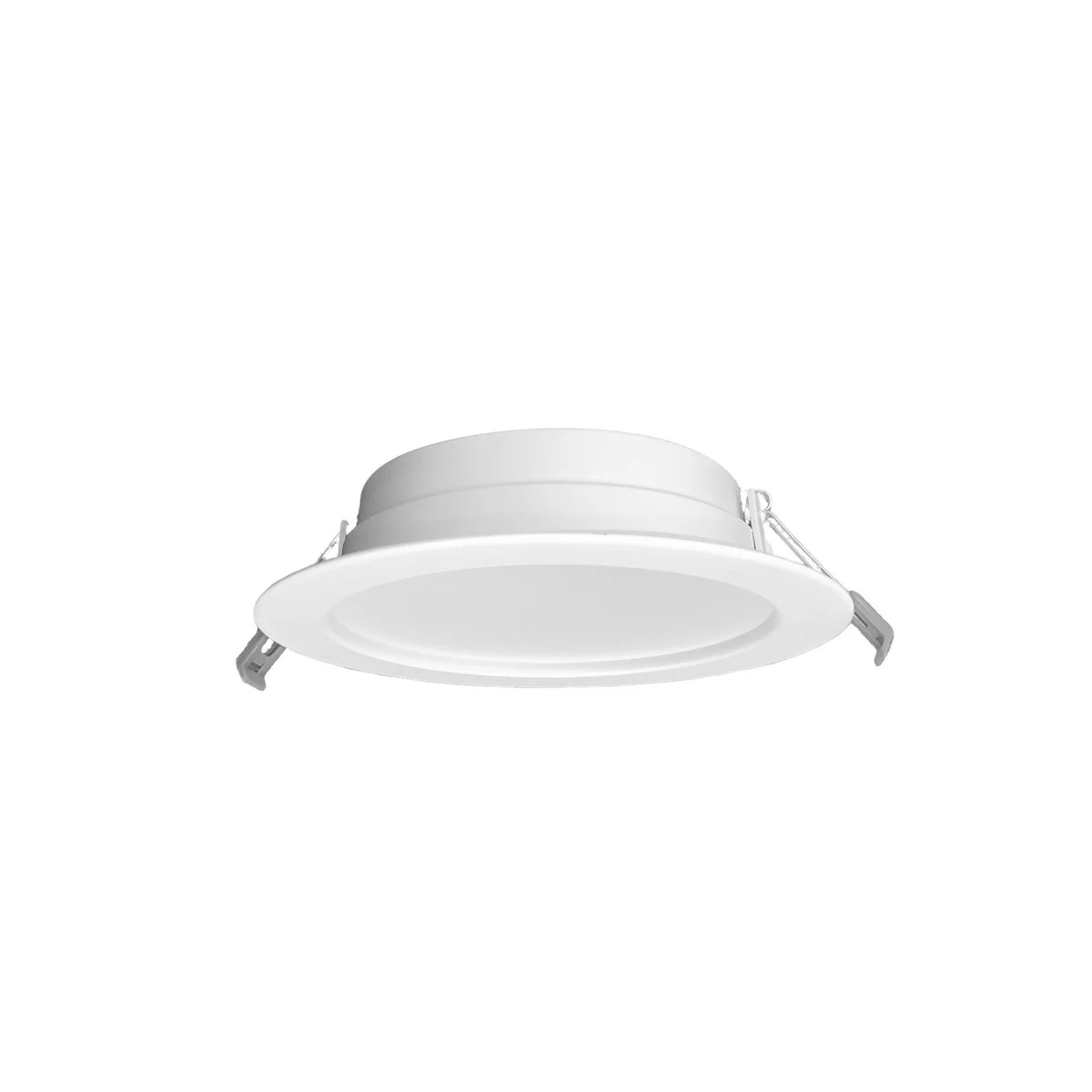

The RP Lighting & Fans 8522WHD series is a commercial-grade 4″ slim LED downlight designed for flexible retrofit and new construction projects. Built with selectable wattage and 5CCT tuning, it helps contractors and facility teams standardize one fixture across multiple spaces. Its low-profile form and broad dimming compatibility make it a practical choice for modern lighting upgrades.
Key Features and Benefits
- Field-selectable output with 8W, 10W, or 12W settings to balance brightness and energy use.
- 5CCT selectable light color (2700K to 5000K) for easy on-site ambiance and task-light tuning.
- Smooth control compatibility with TRIAC and 0-10V dimming systems for versatile integration.
- Wet-rated design (covered patio use) supports dependable performance in moisture-prone areas.
- Backed by ETL Listed, FCC, CEC Compliant, and Title 24 credentials for code-conscious projects.
- Long 50,000-hour rated life and a 5-year limited manufacturer warranty reduce maintenance concerns.
Specifications
- Lumen Output: 950 initial (750 delivered)
- Voltage: 120277V
- CRI: 90
- Light Source: Integrated LED
- Dimensions: 5.5″W x 2.25″H x 5.5″D
- Weight: 1.21 lbs
- Primary Materials: Polycarbonate, steel, aluminum
- Power Source: Hardwired
Common Uses
Ideal for commercial corridors, multifamily common areas, hospitality spaces, offices, and residential interiors where low-profile recessed-style lighting is needed. Also suitable for covered outdoor patio ceilings requiring wet-rated fixtures.
