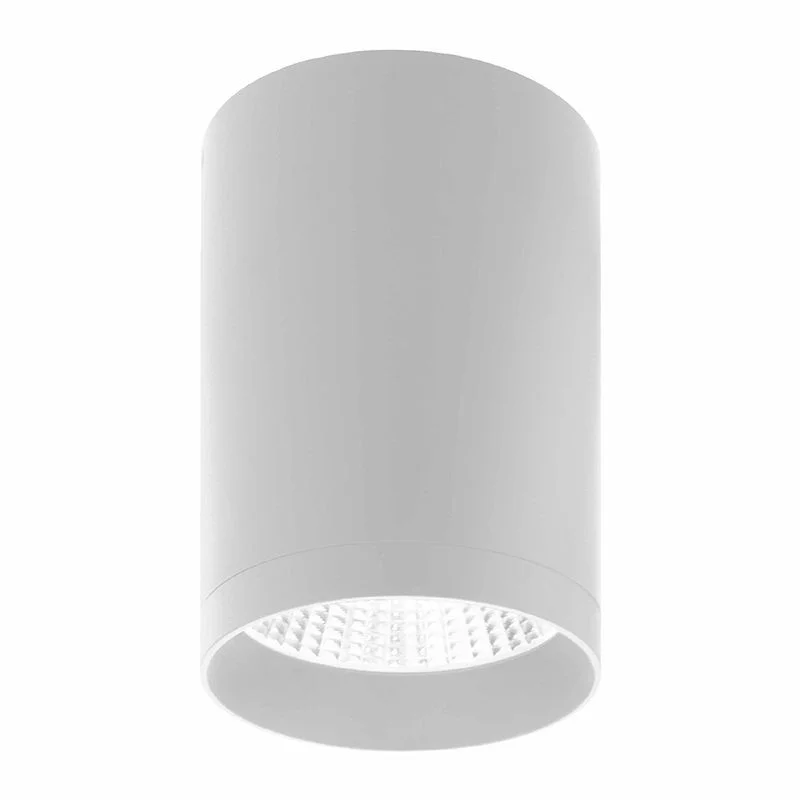

The CMC Series 6-inch cylinder LED brings flexible light output and color selection to commercial indoor spaces. Designed for pendant or ceiling-cylinder installations, it combines adjustable wattage and CCT with a choice of black or white finishes.
Key Features and Benefits
- Choose 21W, 28W, or 35W output and 3000K, 4000K, or 5000K color temperature using the fixture’s selectable settings.
- Supports Triac dimming at 120V and 0–10V dimming across 120–277V systems.
- Aluminum construction and a clear glass lens provide a durable, clean-lined cylinder design.
- Available in black or white to coordinate with different interiors.
- ETL listed and backed by a 7-year warranty.
- Optional accessories include ceiling trims, honeycomb diffuser kits, suspension cable and canopy sets, and rod kits.
Specifications
- Fixture type: 6-inch cylinder pendant and ceiling-cylinder LED light
- Dimensions: 8 6/7 in (L) x 5 3/4 in (D)
- Housing finishes: Black or white
- Materials: Aluminum housing and glass lens
- Voltage: 120–277V
- Wattage: 21W, 28W, or 35W
- Light output: 1,575 lm at 21W; 2,100 lm at 28W; 2,625 lm at 35W
- Color temperature: 3000K, 4000K, or 5000K
- Color rendering index: CRI ≥ 80
- Efficacy: 75 lm/W
- Beam angle: 120°
- Dimming: Triac at 120V; 0–10V at 120–277V
- Power factor: >0.90
- Total harmonic distortion: <20%
- Rated life: 70,000 hours
- Ambient operating temperature: -13°F to 113°F
- IP rating: IP40; suitable for damp locations
Common Uses
Suitable for commercial indoor settings such as offices, retail spaces, hospitality areas, and other interiors needing focused cylinder lighting. Use it as a pendant or ceiling-mounted cylinder, including in damp locations where an IP40 fixture is appropriate.
