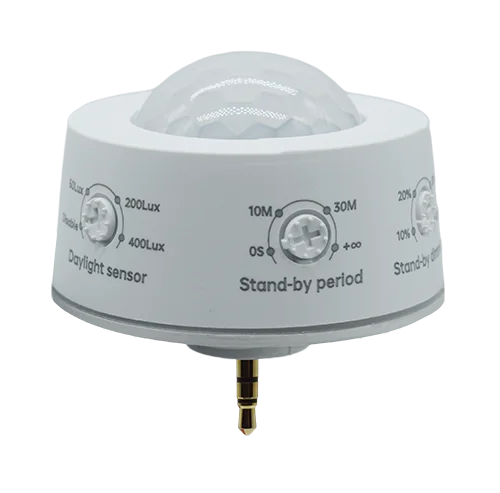

The Best Lighting HD09VR-PH5-1 is a versatile PIR highbay sensor designed for seamless integration with sensor-ready LED fixtures. This sensor enhances lighting efficiency with advanced features like daylight harvesting, photocell function, and flexible dimming control, making it a standout accessory in the Best Lighting lineup.
Key Features and Benefits
- Easy programming with 5 manual switches and optional remote control
- Supports 12-24VDC input and 0-10V dimming for broad compatibility
- Daylight harvesting and photocell for automatic energy savings
- Selectable detection area, hold time, daylight threshold, and standby dimming level
- Elegant, compact round design with IP65 rating for durability
- Works with Best Lighting sensor-ready fixtures (HBLSR, HBRSR, HBLASR, VTSR)
- Reliable performance with up to 12m mounting height and 22.96ft detection radius
- 5-year warranty and FCC certified
Specifications
- Input Voltage: 12-24VDC
- Stand-by Power: <15mA
- Detection Area: 25% / 50% / 75% / 100%
- Hold Time: 5s / 1min / 5min / 10min
- Daylight Threshold: 50Lux / 200Lux / 400Lux / Disable
- Standby Period: 0s / 10min / 30min / infinite
- Standby Dimming Level: 10% / 20% / 30% / 50%
- IP65 rated for demanding environments
- Operating Temperature: -20℃ to +60℃
- Mounting Height: up to 12m (39.37ft)
Common Uses
Ideal for warehouses, factories, gymnasiums, and large commercial spaces where automated, energy-efficient lighting control is essential.
