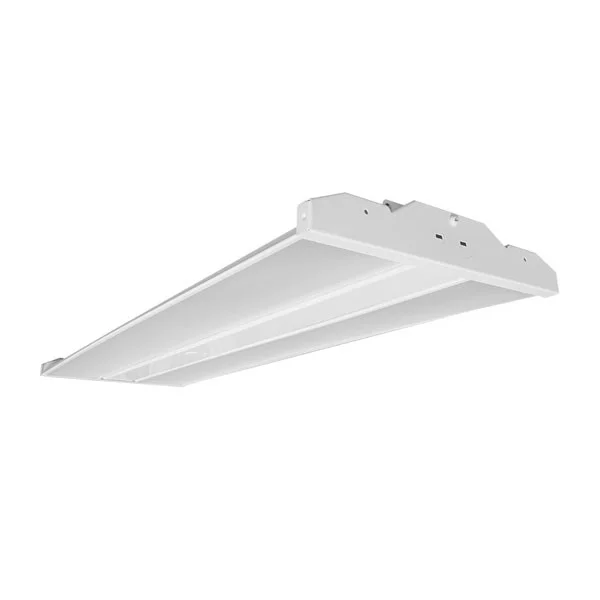

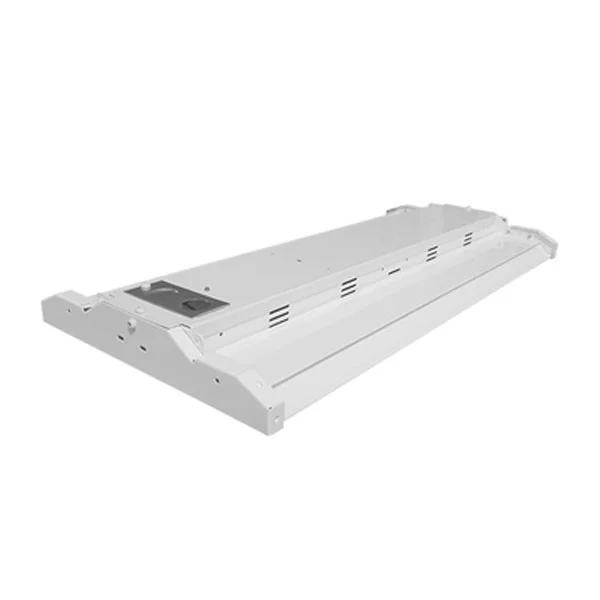

The ATG Skyline G4 series is a versatile linear high bay family designed for modern industrial and commercial facilities that need adaptable output and color tuning. This 2.6′ configuration delivers high lumen performance with selectable wattage and CCT, making it a practical choice for retrofit and new construction projects.
Key Features and Benefits
- Selectable power settings (270W/230W/200W) let you fine-tune light levels and energy use on site.
- Dual CCT selection (4000K/5000K) supports both neutral and daylight-style lighting preferences.
- Frosted lens and 95°x95° distribution help reduce glare while maintaining broad, uniform coverage.
- 0-10V dimming compatibility enables smooth control integration for additional energy savings.
- DLC Premium listed and UL 1598 suitable for damp locations for code-friendly commercial deployment.
- Backed by a 10-year warranty for long-term reliability and lower maintenance risk.
Specifications
- Lumen Output: 30,933|34,670|38,509|31,257|35,238|39,531
- Voltage: 120-277V
- CRI: >80
- Efficacy: 151|155|159|160 lm/W
- Beam Angle: 95°x95°
- Power Factor: >0.9
- THD: <20
- Surge Protection: 6kV
- Dimensions: 31.1″ L x 10.2″ W x 1.77″ D
- Rated Life (L70): 134,000 hours
Common Uses
Ideal for warehouses, distribution centers, manufacturing areas, gymnasiums, big-box retail, and other high-mount applications requiring efficient, controllable, and uniform linear high bay illumination.
