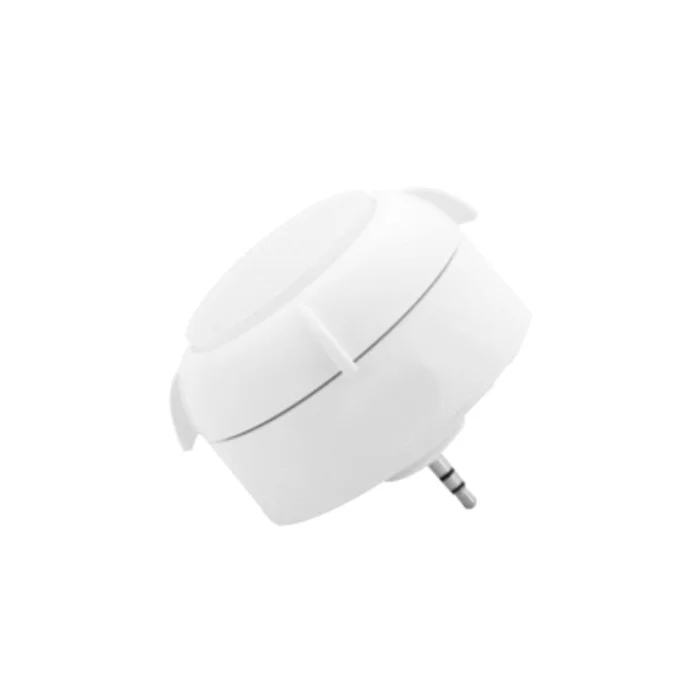

The ATG Electronics DC Basic High Bay Sensor (EFS07-AUX) is a low-voltage, plug-and-play control accessory designed to add intelligent occupancy and daylight response to LED high bay systems. As part of ATG’s sensor control lineup, it helps reduce energy use while maintaining reliable illumination in demanding commercial and industrial spaces.
Key Features and Benefits
- Combines PIR motion sensing, photocell control, and daylight harvesting in one compact sensor
- Supports 0-10V dim-to-off control for smooth automated light level adjustment
- Indoor/outdoor capable with IP66 protection for robust environmental resistance
- Commissioning and tuning via compatible IR remote for fast setup and field adjustments
- UL Listed and RoHS compliant for trusted safety and environmental standards
- Backed by a 5-year warranty for long-term reliability
Specifications
- Input Voltage: 12V
- Input Current: 8mA
- Input Power: 0.1W
- Output Current: 10mA Max
- Dimming Type: 0-10V (Class 2)
- Detection Range: 40-80′
- Mounting Height: 20-40′
- IR Remote Distance: Max 26′
- Operating Temperature: -30°C to 70°C
- Storage Temperature: -30°C to 85°C
- Housing Material: UL 94-5VA
- IP Rating: IP66
Common Uses
Ideal for warehouses, gymnasiums, manufacturing areas, distribution centers, and other high-ceiling commercial or industrial facilities using 0-10V LED high bay fixtures where occupancy-based and daylight-responsive control is required.
