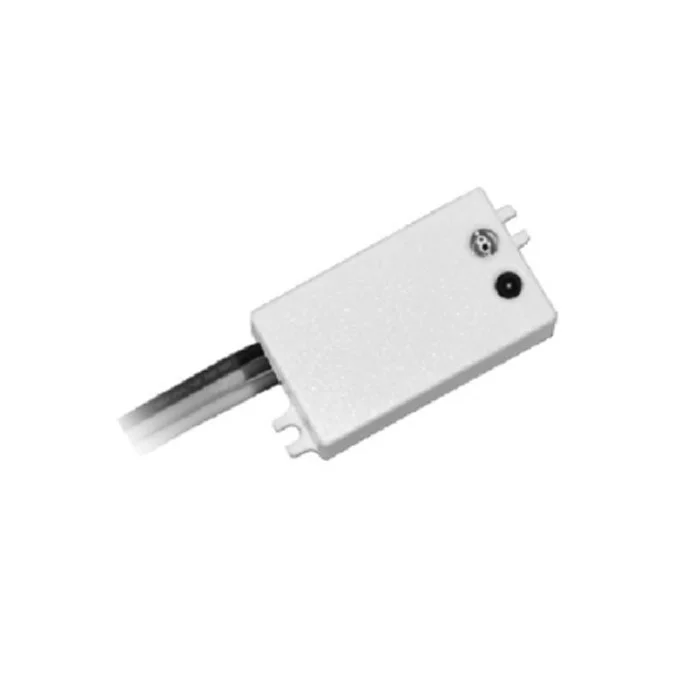

The ATG Electronics ANT-9 is a low-voltage microwave bi-level sensor designed to add intelligent occupancy-based control to LED lighting systems. As part of ATG’s sensor control lineup, it delivers reliable 360° motion detection and flexible dimming behavior for enhanced energy savings and user comfort.
Key Features and Benefits
- 360° microwave motion sensing for broad, consistent coverage in indoor spaces
- Bi-level control supports full output, dimmed standby levels, and off states for optimized energy use
- 0-10V dimming interface integrates with compatible dimming LED drivers
- Configurable operation including hold time, daylight threshold, and standby timing
- High-frequency microwave output under 0.2mW for safe, low-power operation
- Remote programmability with RC-100 for convenient commissioning and adjustments
Specifications
- Power supply: 12V-24V DC
- HF system: 5.8GHz±75MHz
- Detection radius/angle: Max 26′ / 360°
- Mounting height: Max 40′
- Dim control output: 0-10V, max 25mA sinking current
- Remote range: 50′ (15m) indoor, no backlight
- Operating humidity: Max 95% RH
- Operating temperature: -40°F to 158°F (-40°C to 70°C)
Common Uses
Ideal for commercial and industrial interiors such as warehouses, parking structures, corridors, utility rooms, and other spaces where automatic occupancy sensing and bi-level dimming improve efficiency and reduce operating costs.
