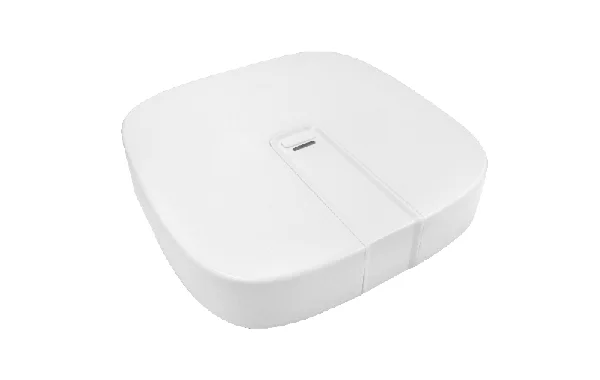

The AleoBlue Gateway SGW-101 is a powerful IoT device designed to connect, monitor, and manage Bluetooth mesh lighting networks in commercial buildings. As a core component of the AleoBlue series, it enables seamless scheduling, remote control, and energy monitoring of lighting systems, making advanced lighting management accessible and intuitive.
Key Features and Benefits
- Effortlessly connects Bluetooth mesh networks to the cloud for advanced scheduling and control
- Supports up to 200 devices per gateway for scalable solutions
- Remote monitoring, maintenance, and over-the-air updates for hassle-free operation
- Advanced security with encrypted OS, secure boot, and automatic updates
- Energy and occupancy monitoring with visual heatmaps and API access
- User-friendly web and iOS apps for easy commissioning and management
- No need for additional wiring or central control boxes
- Customizable lighting zones, scenes, and control parameters
- DLC NLC qualified for high performance and reliability
Specifications
- Power Supply: 12V DC, 1-1.5A
- Dimensions: 120 x 120 x 25 mm (4.7 x 4.7 x 1 in.)
- Operating Temperature: 0°C to +70°C (32°F to 158°F)
- Communication: Bluetooth mesh, TCP/IP, IPv4
- Ports: 1 x RJ45 10/100 Ethernet (PoE option)
- Processor: NXP i.MX6 UltraLite, Ubuntu Core OS
- Housing: ABS, PC, wall or surface mount
Common Uses
Ideal for indoor commercial applications such as retail, education, hospitality, corporate offices, warehouses, and self-storage facilities seeking advanced, scalable lighting control and monitoring.
