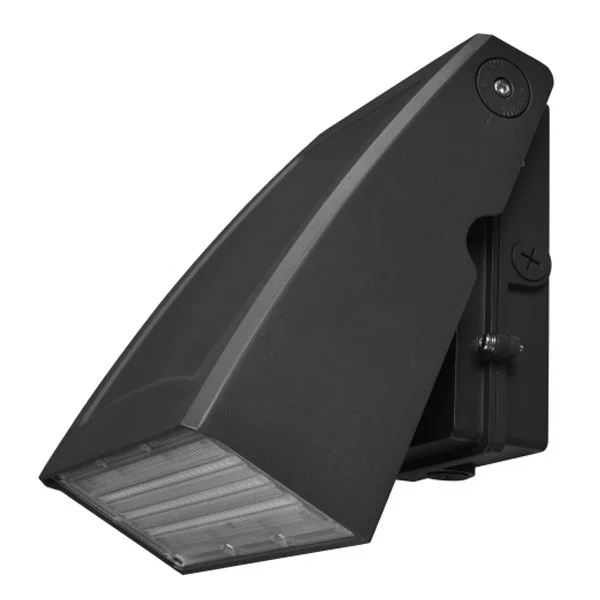

Adjustable Full Cutoff LED Wall Pack, 30W-80W

Adjustable full cutoff LED wall pack, 30W, 60W or 80W watts, 3,600-9,600 lumens, available in 4000K or 5000K color temperature (CCT), up to 100,000 hours rared life, cETLus listed for wet location, LED lamp: 5 years limited warranty, non-electrical: 1 year Limited warranty.
Flexibility and high output in a small footprint are key with this 120-277V adjustable LED outdoor wall pack. Adjustments from 0° – 90° provides you with a “full cut-off” option in the down position or adjustments in between to meet your lighting needs. The included photocell is connected as a default but can be disconnected, depending on your application. With lumen output from 3600 to 9600 in either 4000K or 5000K, this wet listed fixture is perfect to increase safety and security around your outdoor application.
DESIGN FEATURES
CONSTRUCTION

Die-cast aluminum housing and back box
High efficiency, UV-resistant fresnel lens for reduced glare

ELECTRICAL

120-277V | PF = >0.9
Photocell included: default=connected; disconnect is optional
Operating temperature: -22oF (-30oC) to 104oF (40oC)
4432-1-30: 30W | 3600 lms | HID Equivalent – 150W

INSTALLATION

Wall Mounted back box in standard J-Box application
Adjustable 0° – 90° light-engine housing with scale on side for easy positioning

CERTIFICATIONS

cETLus Listed for wet location
IP65 rated for wet location
DLC Listed
LED Lamp: 5 Year Limited Warranty
Non-electrical: 1 Year Limited Warranty
