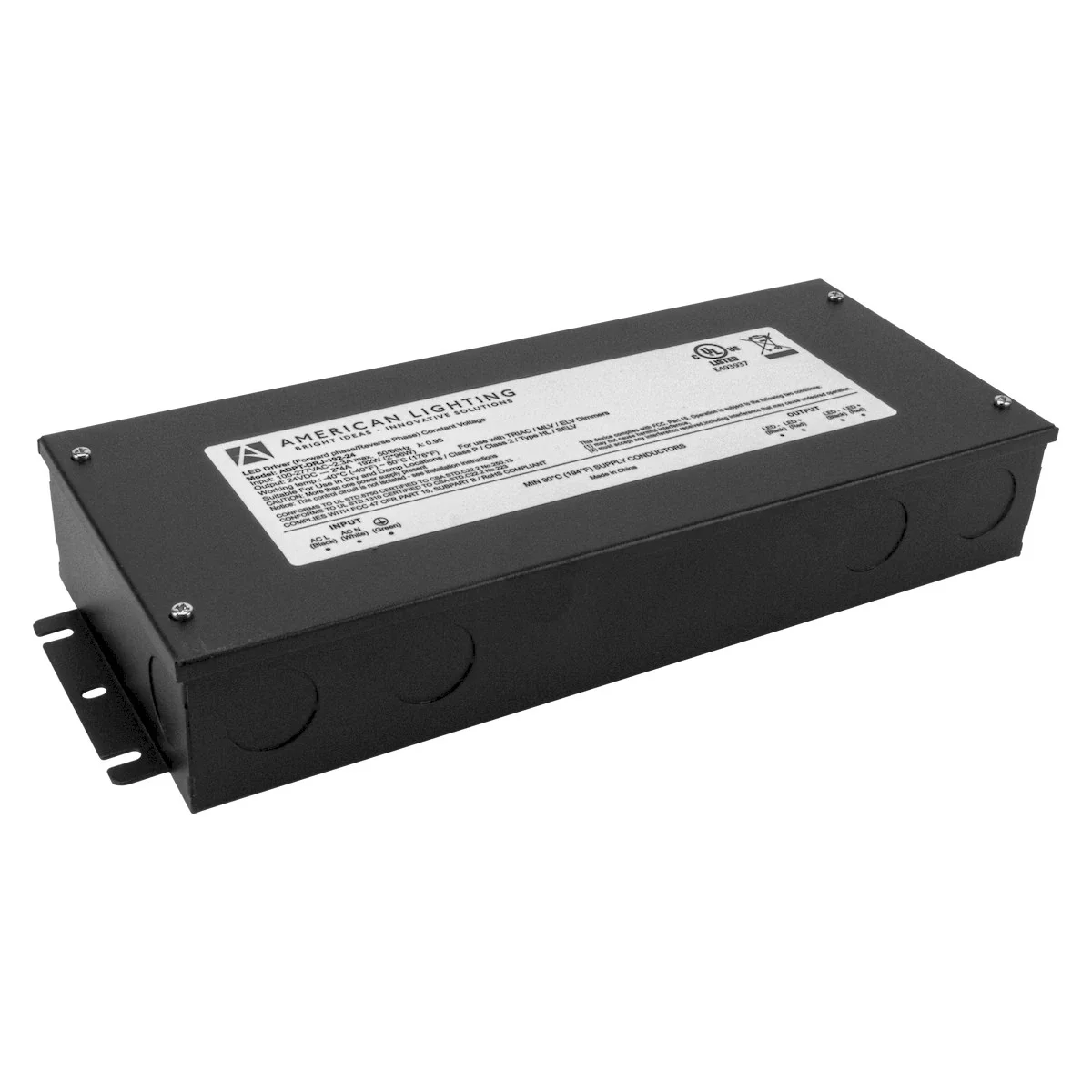

Compact 192W power supply for 24V LED fixtures with 5-in-1 dimming capability, suitable for wet locations. Features multiple protections and easy installation.
Key Features and Benefits
- 5-in-1 dimmable: Compatible with MLV, ELV, TRIAC, 0-10V, and 1-10V dimmer switches.
- Encased in a slim, low-profile aluminum enclosure with knock-outs for easy installation.
- Short circuit, over-voltage, over-temperature, and overload protections.
- cULus Listed for wet locations, ensuring reliability in various environments.
- Class 2, Type HL, FCC Compliant.
Specifications
- Input Voltage: 100-277V AC
- Output Voltage: 24V DC
- Rated Current: 2 x 4A
- Efficiency: > 87% (120V) / 89% (277V)
- Dimensions: 10.94” L x 4.33” W x 1.88” H
- Dimming Range: 0-100%
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Common Uses
Ideal for powering 24V LED fixtures in residential, commercial, and industrial settings, especially where dimming and wet location installations are required.
