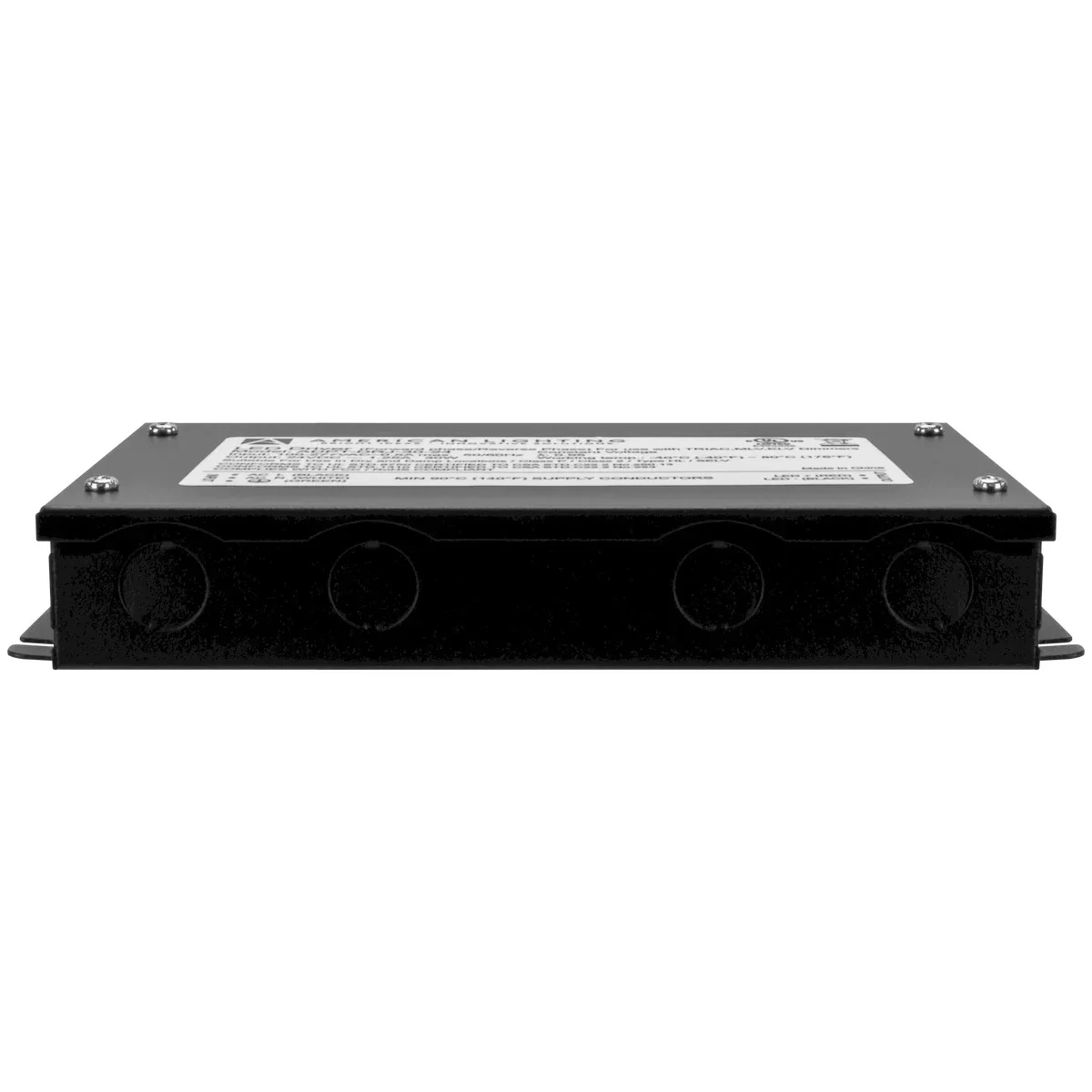

Compact 12V power supply with selectable dimming options, ideal for under cabinet and tape lighting installations.
Key Features and Benefits
- Dimmable with standard TRIAC, MLV, and ELV dimmers
- Forward phase and reverse phase compatible
- Short circuit, over-load, and over-temperature protections
- Slim, compact aluminum housing design
- Integrated wiring compartment
- PWM Output with 10-100% load operation
- Free air convection cooling
- Class 2, Class P, Type HL, FCC compliant, cULus Listed, Wet location rated
Specifications
- Input Voltage: 100-277V AC
- Output Voltage: 12VDC
- Rated Current: 2.5A@12VDC
- Power Factor: 0.99@120V / 0.98@277V
- Efficiency: > 79%
- Dimensions: 6.49″ L x 3.6″ W x 1.02″ H
- Operating Temp: -40°F to 140°F (-40°C to 60°C)
- Wet location rated
Common Uses
Ideal for under cabinet lights, tape light, and various LED fixture installations.
