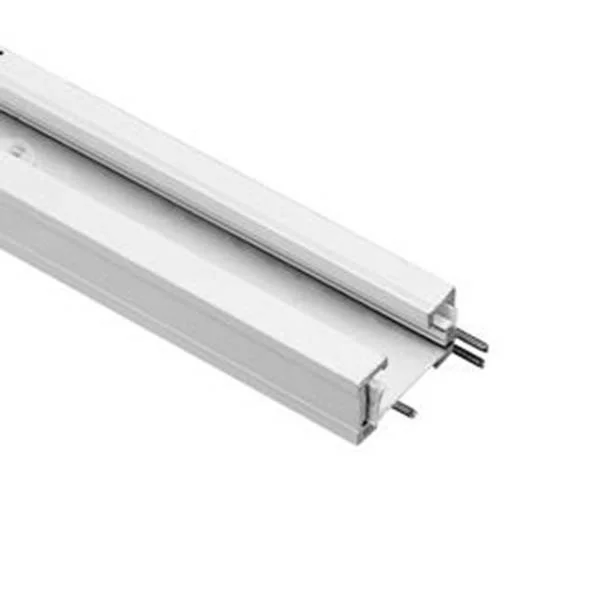

8Ft. Track Lighting Accessories/Single Circuit

DESIGN FEATURES

• Extruded aluminum “i” beam channel
• One piece thermoplastic insulator
• Injected molded polycarbonate dead-end w/ set screw
• Standard lengths may be cut-to-length by installer
• ETL/UL: cULus

ELECTRICAL

• Two 12 gauge solid copper conductors
• Rated 20 amps at 120 volts
• Aluminum channel used as system ground
• One-piece insulator ensures consistent conductor spacing for reliable shorts to ground
• Insulating bashings supplied at mounting hole locations to prevent shorts to ground

PRODUCT INSTALLATION

Polarity line provides visual cue to align fixture properly

SUPPLIED WITH TOGGLE BOLTS FOR SURFACE MOUNTING

• Integral top channel accommodates pendant mounting hardware and wire routing to electrical feed
• Connector and feeds simply push into track sections
