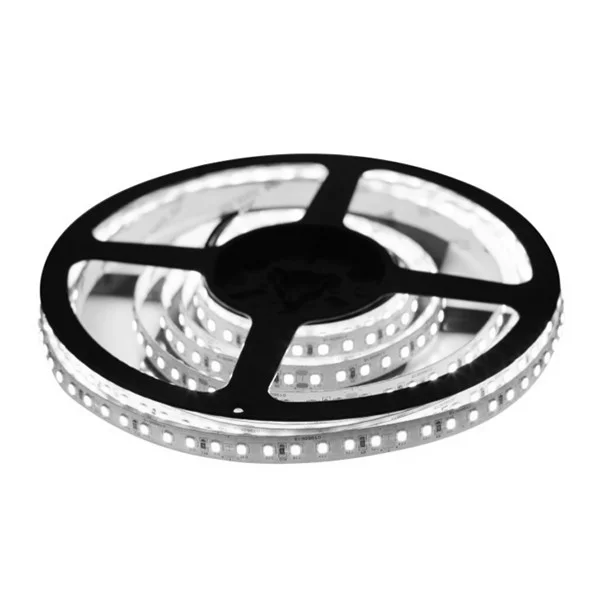

Indoor Extra High Output LED Ribbon – 8.8W, 24V, 620-700 Lumens
Boost your indoor lighting experience with the WM-ULR-IN-16F-XHO, a remarkable extra high output LED ribbon designed for versatility and efficiency. Operating at 24 volts and 8.8 watts per foot, this LED strip delivers an outstanding 620-700 lumens per foot while consuming minimal power.
Product Applications
Ideal for various applications, this LED ribbon is perfect for undercabinet lighting, soffit lighting, display cases, and toe kick lighting. Its flexible design allows you to customize your lighting project with ease.
Electrical Specifications
Voltage: 24VDC (requires LED driver)
Wattage: 8.8W per foot
Maximum Run: 11 feet
Efficacy: 70-79 lumens per watt
Housing Specifications
Cutting increments: Every 2 inches
Adhesive: Preinstalled 3M double-sided tape (9474LE)
Included connectors: 1 female ribbon-to-power supply connector (prewired) and 1 male plug for connection to the next ribbon (prewired)
IP Rating: IP20
Certifications
UL Certified
Lighting Specifications
Dimmable: Yes, with a magnetic driver
LED Type: SMD2835, spaced 1/3” on center, 37 chips per foot
Each chip wattage: 0.23 watts
Total Lumens: 620-700 per foot
Color Temperatures: Available in 2700K, 3000K, 4000K, or 5000K
Color Rendering Index (CRI): 90
Beam Angle: 120°
Warranty
5-year warranty
