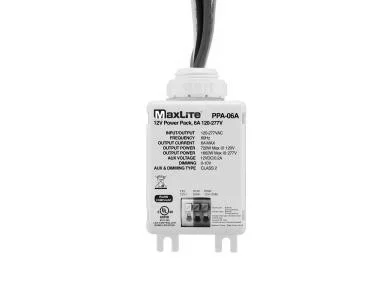

The PPA-06A is a versatile relay designed to integrate non-MaxLite luminaires with c-Max control apps, offering an affordable solution to meet energy codes. It provides 12V auxiliary power and features a 6A relay for high voltage switching through 0-10V dimming inputs.
Key Features and Benefits
- Class 2 device with ½” threaded nipple for standard enclosures
- Built-in 12V auxiliary power with 200mA capacity
- Supports max load of 6A at 120-277V
- Compatible with BLE sensors for individual or group control
- Customizable dimming scenes and high-trim settings
- UL Listed for safety
- 5-year warranty
Specifications
- Operating Voltage: 120-277V
- Maximum Load: 6A, 720W@120V, 1662W@277V
- Load Switching: Zero-cross Hybrid Switching
- Control Output: 0-10V
- Sinking Current: 10mA
- Aux Power Output: 12Vdc 200mA
- Operating Temperature: -22°F to 149°F / -30°C to 65°C
- Dimensions: 3.22” x 1.71” x 1.25”
- Color: White
- Weight: 2.75oz
Common Uses
Ideal for retrofit applications in office, warehouse, industrial, hospitality, retail, and educational facilities.
