Availability: 10 in stock

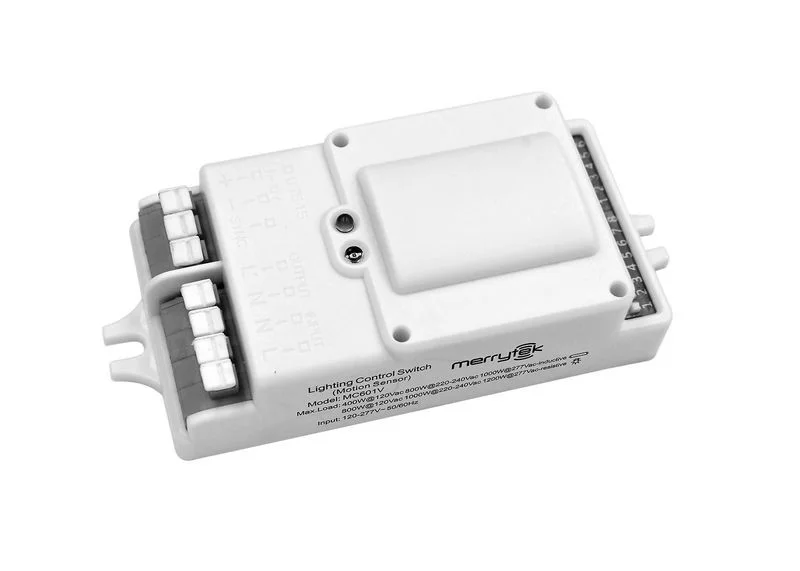

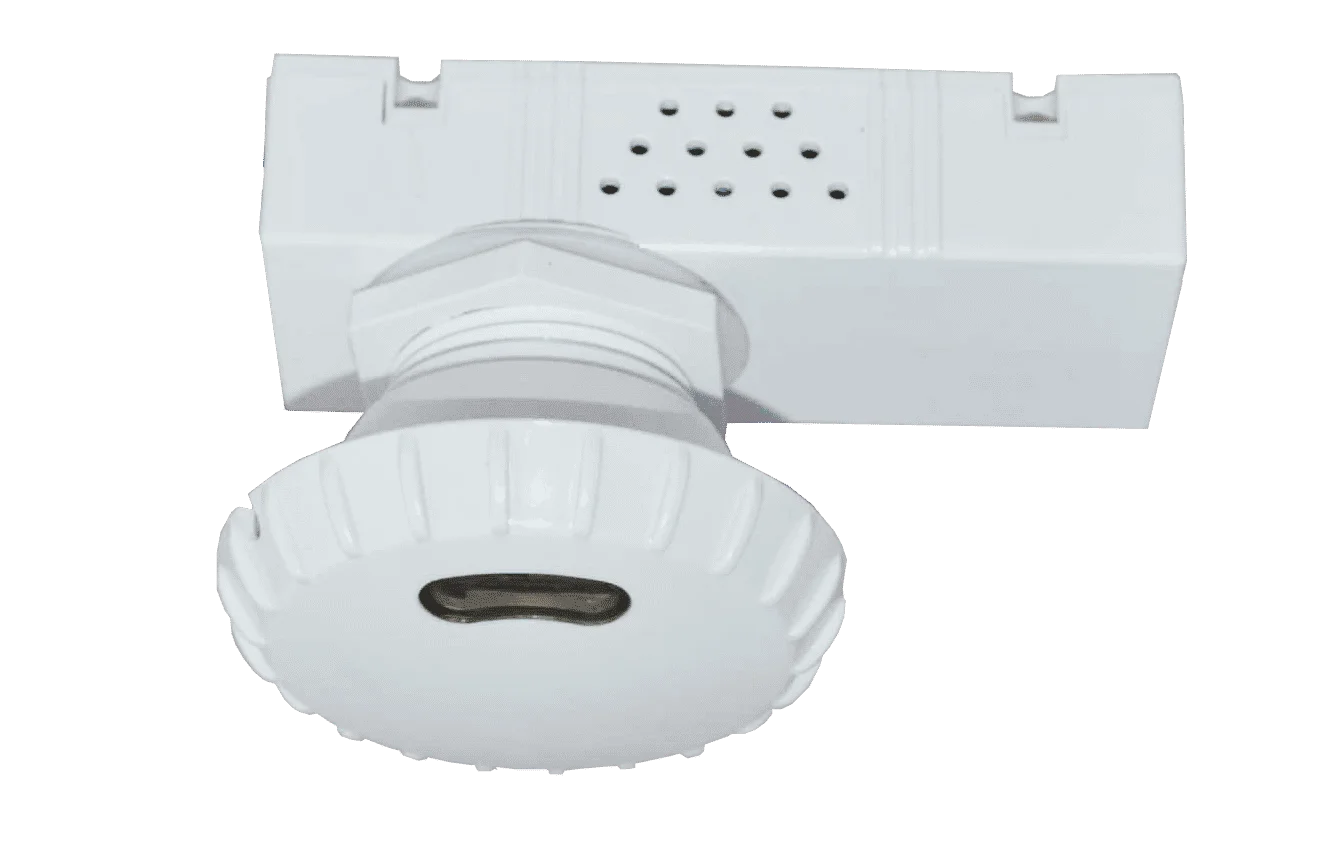

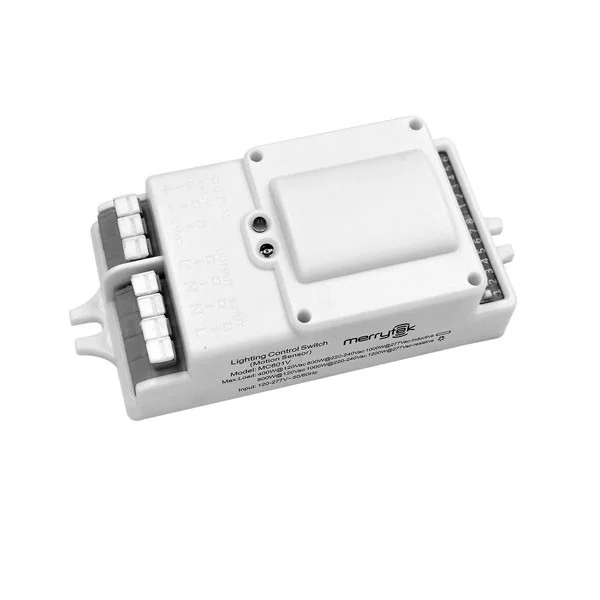

Upgrade Your Lighting Setup with 0-10V MW 120-277 SensorOptimize your lighting control with the 0-10V MW 120-277 sensor. Perfect for commercial and industrial environments, this sensor offers seamless integration with 1-10V dimmable LED drivers or ballasts, enabling automatic switching or dimming. It features a built-in daylight sensor, ensuring energy-efficient lighting by adjusting based on ambient light levels.Key FeaturesAutomatic switching or dimming compatible with 1-10V dimmable LED drivers and ballasts.Built-in daylight sensor for enhanced energy savings.Compact design for easy installation within most luminaires.Precise settings for detection area, time delay, and daylight threshold via DIP switch.Wide detection area, up to 16 meters in diameter.Supports higher mounting heights up to 12 meters.Optional surface mounting and base mounting for versatile applications.Technical SpecificationsOperating voltage: 120~277Vac, 50Hz/60HzRated capacitive load: 400W @ 120V; 1000W @ 277V (Ballast); 800W @ 120V; 1000W @ 277V (Resistive)HF system: 5.8GHz + 75MHz, ISM wave bandTransmitting power: <0.5mWPower consumption: >0.5W (standby), <1W (operation)Detection zone: Max. (D x H): 16m x 12mDetection sensitivity: 10% / 50% / 75% / 100%Hold time: 5s / 30s / 90s / 3min / 20min / +Daylight sensor settings: 2lux / 5lux / 10lux / 25lux / 50lux / 100lux / DisableStand-by period: 0s / 5s / 5min / 10min / 30min / 1h / +Stand-by dimming level: 10% / 20% / 30% / 50%Maximum mounting height: 15mMotion detection speed: 0.5~3m/sDetection angle: 150° (wall installation); 360° (ceiling installation)Operating temperature: -35°C~70°CIP rating: IP20
