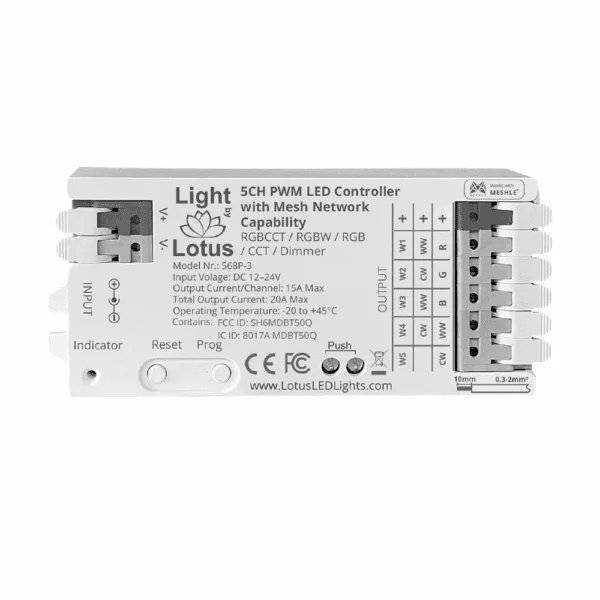

The Lotus LED Lights 568P-3 is a versatile 5-channel PWM controller designed to unlock advanced control of modern LED strip installations. As part of the MESHLE ecosystem, it enables flexible configuration for multiple strip types and seamless Bluetooth Mesh operation across single or grouped zones. This controller is a key component for scalable, app-driven tape lighting projects in residential and commercial interiors.
Key Features and Benefits
- One controller supports RGBCCT, RGBW, RGB, CCT, and single-color LED strips for broad project compatibility.
- Bluetooth Mesh networking allows device-to-device communication and group control without Wi-Fi or a hub.
- MESHLE app control provides color tuning, scenes, animations, scheduling, and timer-based automation.
- High load handling up to 480W total with up to 15A per channel for demanding strip lighting runs.
- Optional cloud connectivity through a MESHLE Gateway adds remote and voice-control capability.
- Compatible with battery-free EnOcean switches for convenient wall-control integration.
Specifications
- Operating Voltage: 12-24V
- Connected Load: 480W max
- Output Current: 15A per channel, 20A max total
- Control Channels: 5-channel PWM
- Technology: MESHLE Bluetooth Mesh
- Radio Range (Outdoor): 30-40 meters
- Radio Range (Indoor): 10-25 meters
- Connectors: Lever clamp terminals
- Ingress Protection: IP20 (indoor use only)
- Dimensions: 108mm x 45mm x 18mm
- Finish/Color: White
Common Uses
Ideal for indoor tape lighting in homes, hospitality spaces, retail displays, accent coves, under-cabinet runs, and architectural RGB/CCT scenes where flexible multi-channel control and wireless grouping are required.
