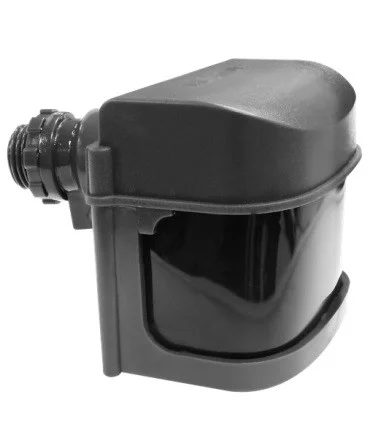

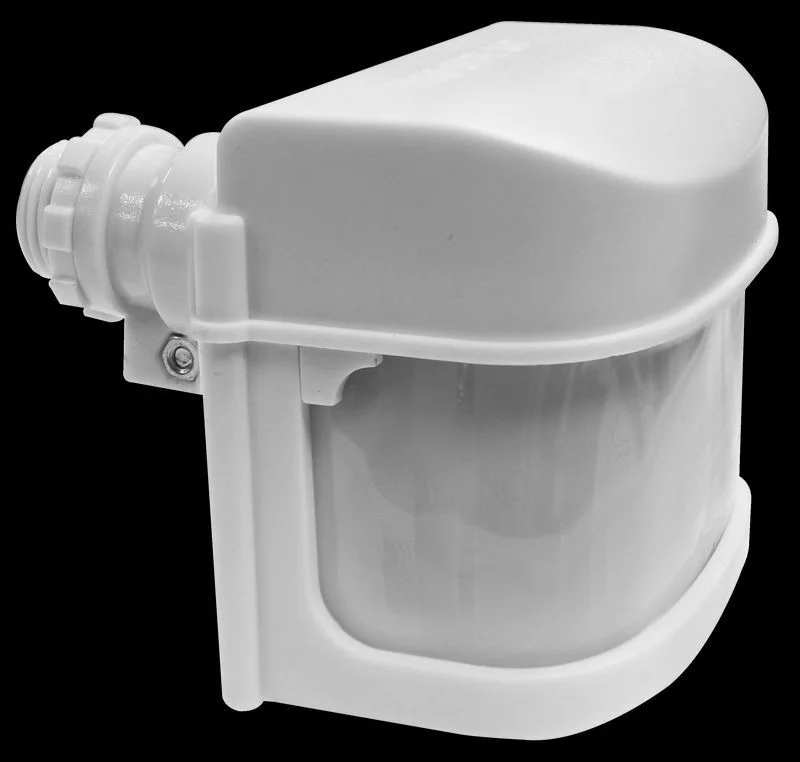

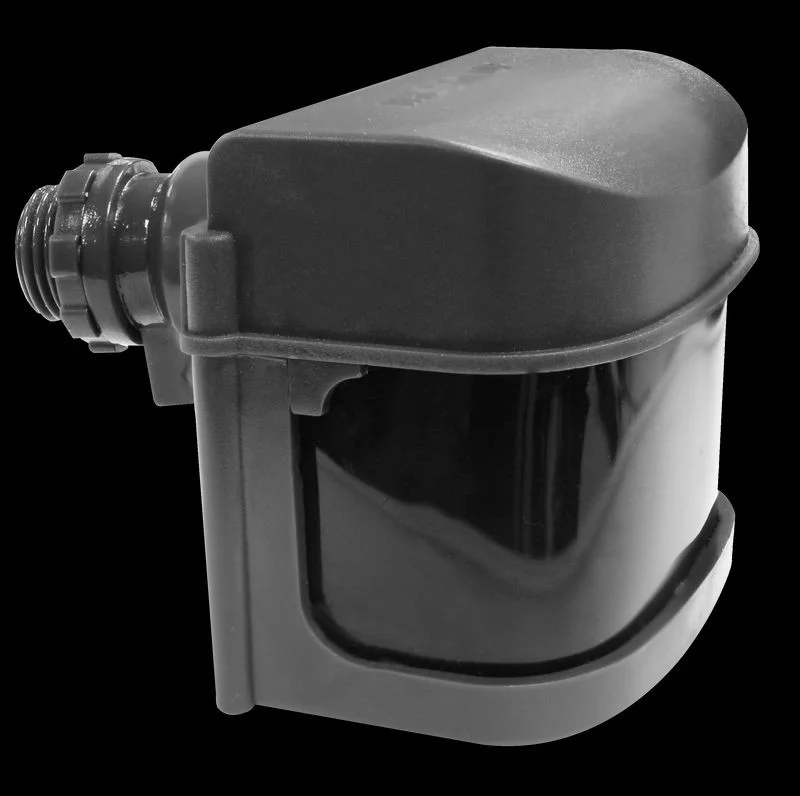

Westgate Outdoor Motion Sensor Lights
Ideal for enhancing security and visibility in walkways, parking lots, dock areas, warehouses, garages, backyards, entrance ways, and motels, the Westgate Outdoor Motion Sensor Light provides superior performance in outdoor settings.
ELECTRICAL SPECIFICATIONS
- Max Load: 500W
- Voltage: 120VAC 50/60Hz
- Ambient Light Exposure: Night detect/Day detect: 5-50lux/35-400lux
HOUSING SPECIFICATIONS
- Durable Build: Constructed from high-quality polycarbonate
- Fit and Compatibility: 1/2 NPT threads fit into 1/2” weatherproof box outlets
- Mounting Height: Suitable for installation heights of 3.2-13ft.
- Temperature Range: Operating temperature from 14°F to 104°F
- Color Options: Available in White and Bronze finishes
- Weather Resistance: Wet location listed for all-weather use
TECHNICAL SPECIFICATIONS
- Detection Coverage: Wide 240° detection angle
- Detection Distance: Adjustable detection range of 30-68ft.
- Time Settings: Customizable time settings of 1, 5, and 20 minutes ±30%
- Dusk Functionality: Off/3hr/6hr/dusk to dawn settings
- Motion Speed: Effective detection for motion speeds of 2-4.9ft./s
- Operating Modes: Test, Auto, and Override
