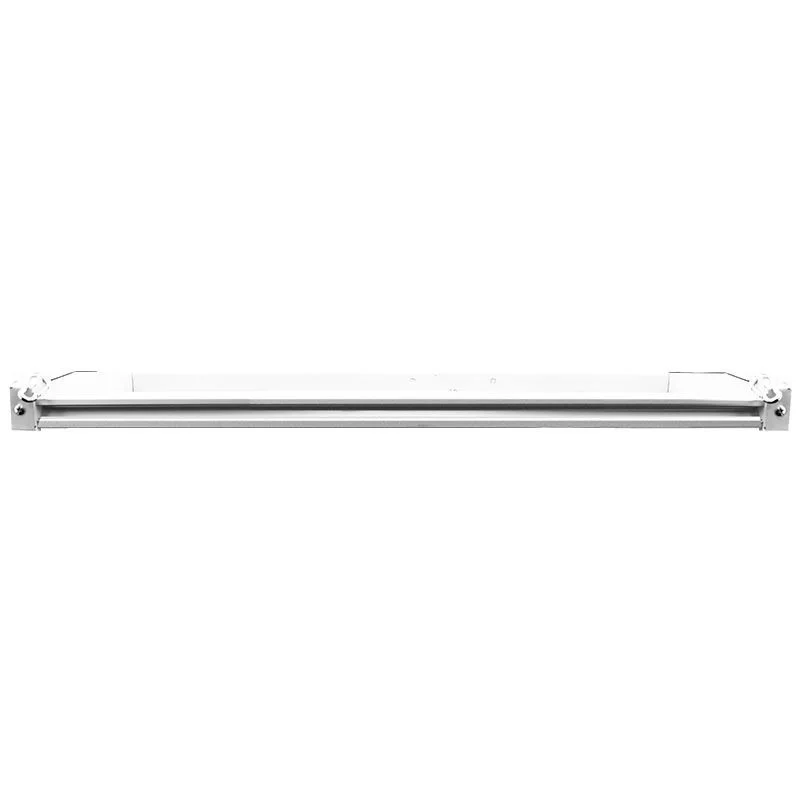

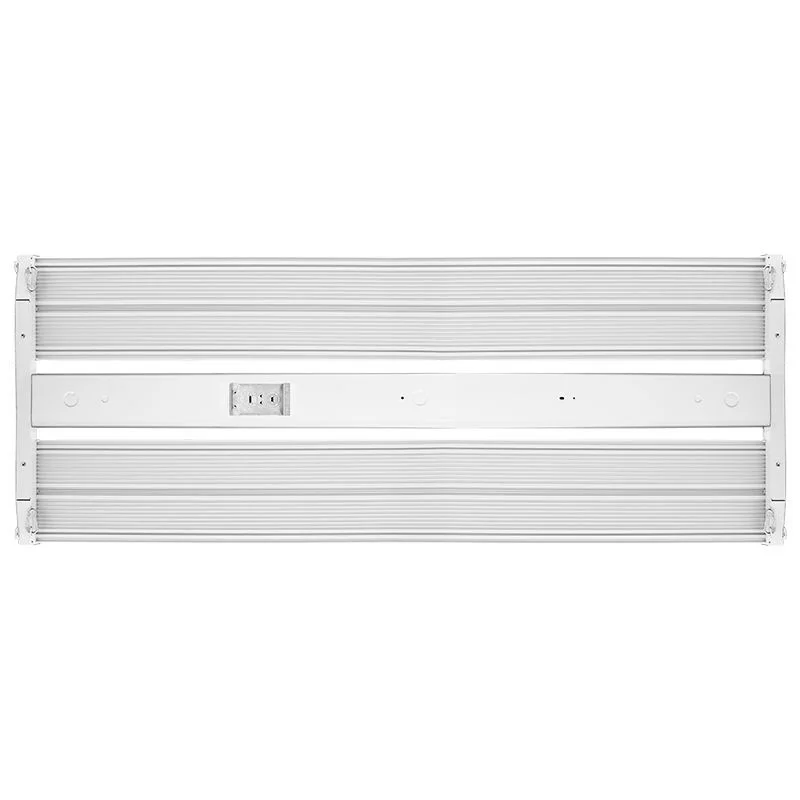

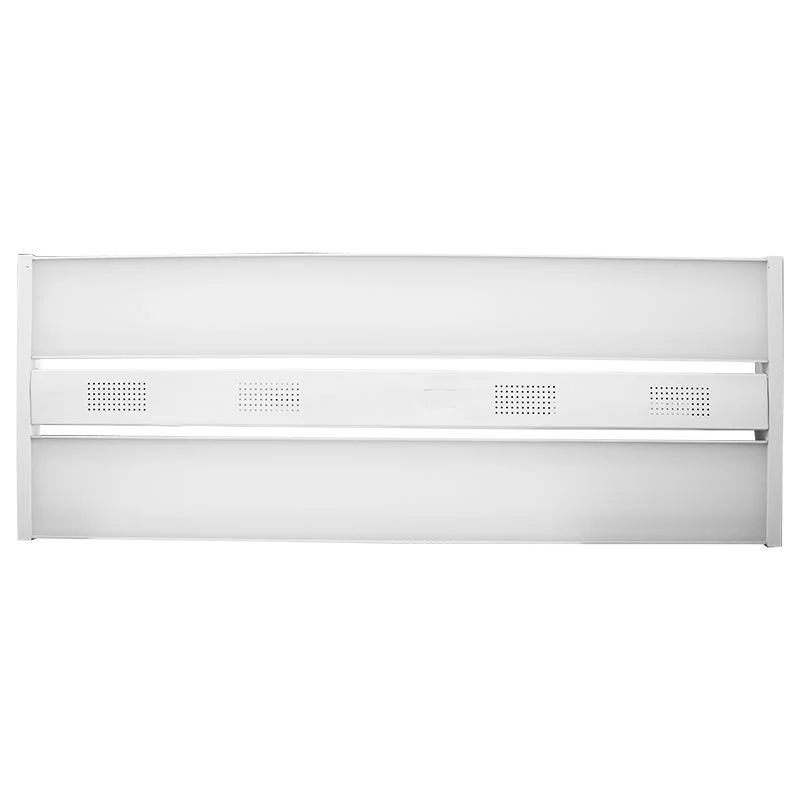

4th Generation of Linear High Bay – 80W-150W Power and CCT Adjustable

Product Overview
Discover the superior illumination capabilities of the 4th Generation Linear High Bay Light, SKU: WM-LLHB4-80-150W-MCTP. Delivering selectable power options of 80W, 110W, and 150W, this LED fixture boasts a maximum output of 18,750 lumens. Customize your lighting environment with the adjustable color temperature settings of 3000K, 4000K, and 5000K. Designed for long-lasting performance, this fixture offers up to 50,000 hours of rated life and is suitable for damp locations. Enjoy peace of mind with a 5-year limited warranty.
Ideal Applications
Perfect for replacing conventional HID and fluorescent lighting systems, this versatile high bay light is suitable for:

Manufacturing facilities
Warehouses
Large indoor spaces with mounting heights from 10ft. to 40ft.
Retail environments, including grocery stores and gymnasiums

The fixture can also be surface-mounted, offering flexibility in installation.
Key Features

High-quality LED chips ensure high efficiency, excellent heat dissipation, and lumen maintenance
Multi CCT and power levels are easily selectable via a switch in the driver
Durable polycarbonate lens with high flame retardant properties

Electrical Specifications

Input Voltage: 120~277V AC/50~60Hz
Wattage: 80W, 110W, 150W
Power Factor: >0.95
Efficacy: 125 lumens per watt

Mechanical Specifications

Equipped with a surge protector
Constructed from 24-gauge steel with an aluminum LED board
Operating Temperature Range: -4°F to 131°F
Suitable for damp locations
Includes V-hooks for easy mounting

Lighting Specifications

Dimmable: 0-10V dimmable
Total Lumens: Up to 18,750 lumens
Color Rendering Index (CRI): >80
Wide beam angle for expansive coverage
Uses Edison 2835 SMD type LEDs
50,000-hour rated life
