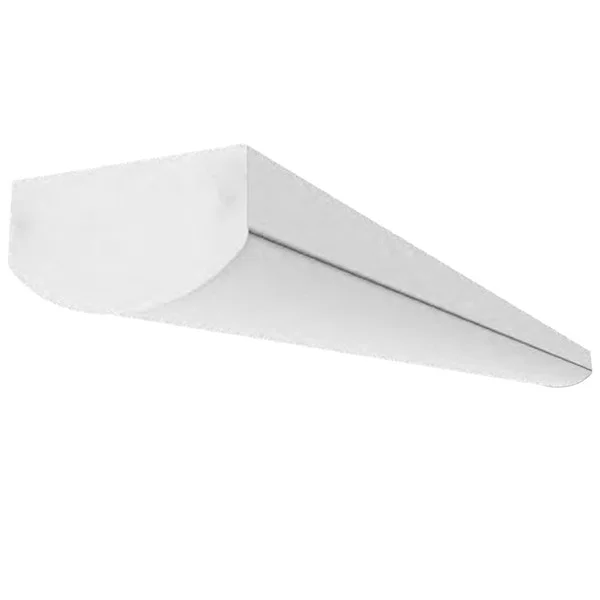

ATG’s DUO Linear Stairwell fixtures, available in 2’, 4’, and 8’ lengths with selectable wattage & CCT settings, effectively illuminate stairwells and passageways in commercial and industrial applications. The LSW provides an appealing design while offering the latest, high performance components and options such as a concealed motion sensor and emergency battery backup.
PRODUCT HIGHLIGHT
- Selectable wattage & CCT
- Up to 152 LPW
- 0 – 10V dimming
- L70 > 100,000 hours
- 10-year warranty
PRODUCT SPECS
- Input Voltage (VAC): 100-277V
- Wattage: 10, 12, 14, 15, 18, 20, 25, 30, 40, 45, 60, 70, 80
- CCT (K): 3000, 4000, 5000* Selectable
- Projected Lifetime: 100,000 Hrs (L70)
- Limited Warranty: 10 Years
- CRI: 80+
- Finish Color: White (JA01WZ)
- Housing: Die Cast Aluminum
- Optic Types: Frosted, Clear
- Dimming: 0-10V Dimming (0% to 100%)
- Operating Temperature: -25°C ~ 40°C
- IP Rating: IP20
