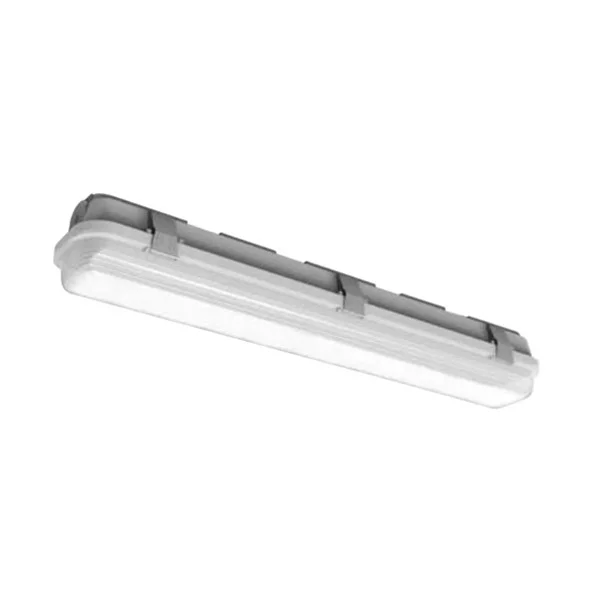

48-Inch LED 40 W Linear Vaportight

48-inch LED linear vaportight, 40 watts, 5,348-5,416 lumens, available in 4000K or 5000K color temperature (CCT), up to 100,000 hours rated life, IP65 and UL wet listing, halco standard 5 year, 10 year available.
Halco’s Linear Vaportight – HLVT Series offers outstanding value and features long lasting reliability. The product is easy to install, featuring stainless steel clips, tethered LED boards, and multiple mounting options. It is the ideal industrial solution aimed to meet demanding environment needs. The lens is designed to provide visual comfort while delivering the efficient light output. The HLVT Series is guaranteed to deliver immediate energy savings and low maintenance costs. This easy-to-install vaportight is a low-cost solution rated for wet locations and stands up to the elements with its IP66 rating.

Water tight, IP66 Rated
Durable, Impact Resistant Housing
Quick, Tool-less Entry
0-10V Dimmable
Designed for Easy Installation
High Penetration Lens with Prism Design and Ray Concentration
Stainless Steel Hasps and Clips

APPLICATIONS

Utility Lighting
Parking Garage
Stairwell Lighting
Low Bay Lighting
Manufacturing/Task Lighting

PERFORMANCE

LEDs are rated for greater than 100,000 hour life with calculated lumen maintenance >70% (l70) at 25°c.
0-10V dimmable driver standard available in 120-277v
-40° To +55°c ambient operating temperature
Power factor > 0.9
4kV surge protection

DESIGN

Designed for the harshest elements: tamperproof, waterproof, corrosion proof, and inset-proof
Tethers connect the housing to the LED Board
High Penetration Lens with Prism Design and Ray Concentration

CONSTRUCTION

Durable, 5VA Impact-Resistant Polycarbonate Housing
Stainless Steel Clips for Tooless Entry
Non-Corrosive Polycarbonate Housing
Completely Gasketed to maintain a true vaportight form

ENVIRONMENT

IP66 rated
UL wet location listed
Rohs compliantMeets FCC part 15, subpart b, class a standards for conducted and radiated emissions

CERTICATION

All luminaires are built to UL1598 standards, and bear appropriate culus labels for wet location
DLC® (designlights consortium) premium qualified – see
IP66

OPTION

Aircraft Cables
Cord and Plug Assembly
Microwave Multi-Level Motion Sensors
Emergency Battery Backup
