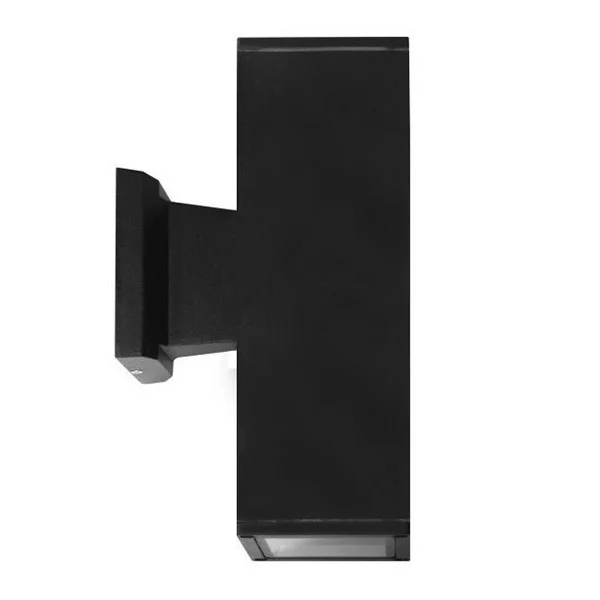

4428 Series 4-Inch LED Architectural Square Cylinder Up & Downlight

The Outdoor LED Cylinder Family features wet location rated wall mount style cylinders with down light and up & down light options. Choose from energy efficient 13W, 17W, or 27W AC modules, with finishes available in black, brushed nickel, or oil-rubbed bronze. Features Triac dimming down to 5%, using most standard dimmers. Utilizes AC circuit on board technology for cooler operating temperature and extended lifetime.

DESIGN FEATURES

CONSTRUCTION
Aluminum die-cast with powder coat finish

ELECTRICAL

• 120V Direct AC operation with DOB
• Triac dimming down to 5%
• Various wattages of modules available
• Cooler operating temperature without driver
• Operating temperature: -31ºF (-35ºC) to 122ºF (50ºC)
• Stable driving current prevents inrush damage to circuit switches and modules
• Available in 80CRI, 3000K & 4000K

INSTALLATION

• Easy surface mounting for simple installation using anchors and screws
• J-box mountable

LENS

• Clear acrylic lens protects LEDs while allowing for optimum lumen output
• 37° beam angle

FINISH
Black, or oil-rubbed bronze

CERTIFICATIONS

• cCSAus for wet location
• 5 year limited warranty
• Wet location rated
