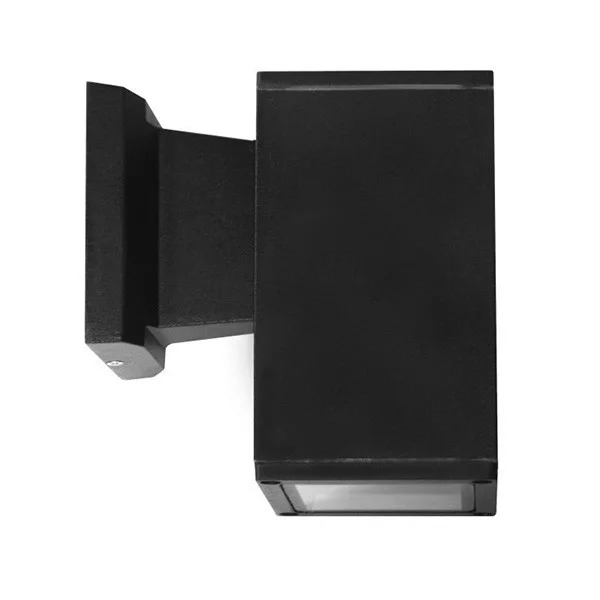

The Outdoor LED Cylinder Family features wet location rated wall mount style cylinders with down light and up & down light options. Choose from energy efficient 13W, 17W, or 27W AC modules, with finishes available in black, brushed nickel, or oil-rubbed bronze. Features Triac dimming down to 5%, using most standard dimmers. Utilizes AC circuit on board technology for cooler operating temperature and extended lifetime.
CONSTRUCTION
Aluminum die-cast with powder coat finish
ELECTRICAL
- 120V Direct AC operation with DOB
- Triac dimming down to 5%
- Various wattages of modules available
- Cooler operating temperature without driver
- Operating temperature: -31ºF (-35ºC) to 122ºF (50ºC)
- Stable driving current prevents inrush damage to circuit switches and modules
- Available in 80CRI, 3000K & 4000K
INSTALLATION
- Easy surface mounting for simple installation using anchors and screws
- J-box mountable
LENS
- Clear acrylic lens protects LEDs while allowing for optimum lumen output
- 37° beam angle
FINISH
Black, brushed aluminum or oil-rubbed bronze
CERTIFICATIONS
- cCSAus for wet location
- 5 year limited warranty
- Wet location rated
