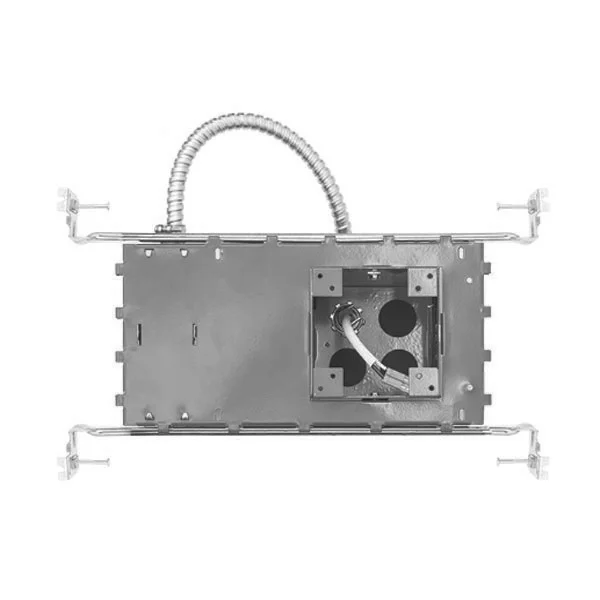

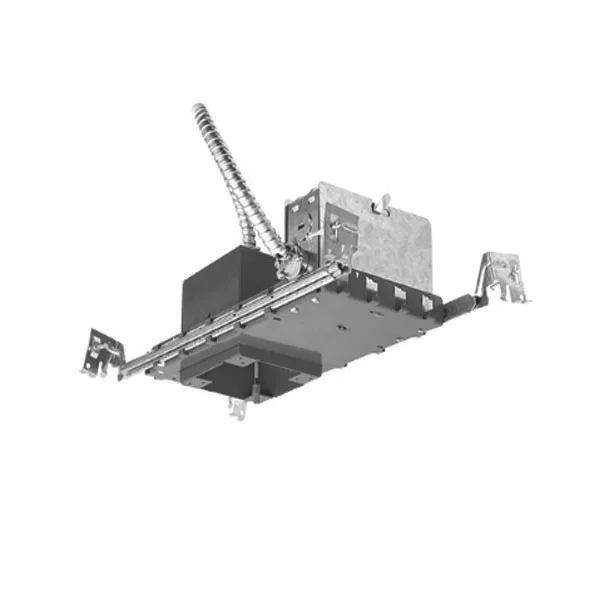

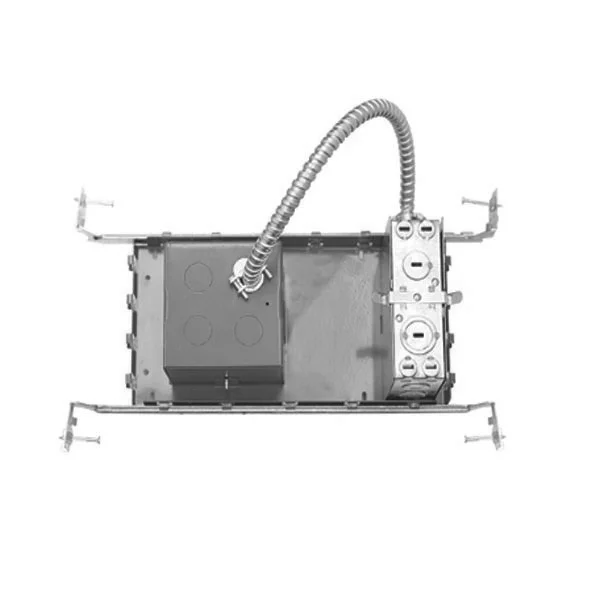

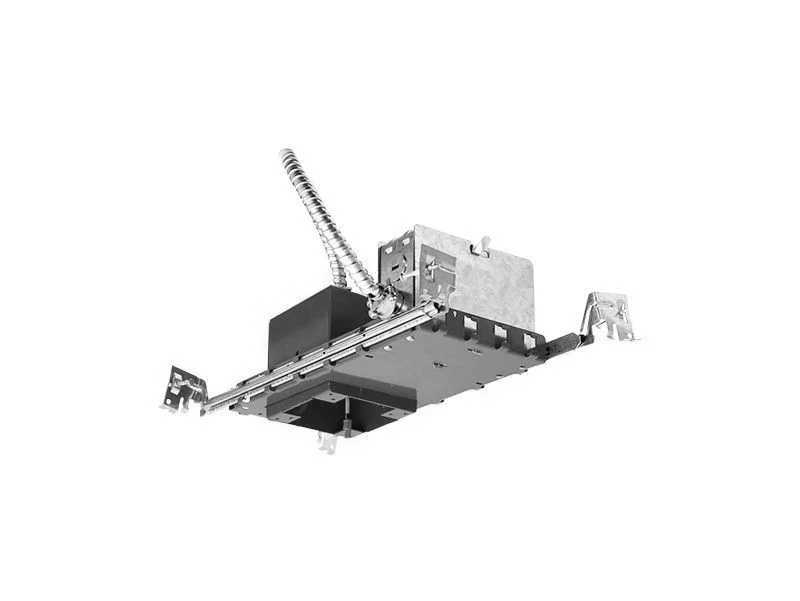

4-Inch Airtight Fire-Rated Junction Boxes Recessed Light Housing

Enhance your lighting installations with the 4-inch Airtight Fire-Rated Junction Box Recessed Light Housing. This high-quality product is ETL listed for 2-hour fire resistance, exceeding UL 263 safety code standards. Designed for direct contact with IC insulation, it ensures safety and performance in any setting.This 4-inch Fire-Rated Junction Box Housing is perfect for LED Surface Mount Down Lights and J-Box Recessed Lights, making it an ideal choice for both residential and commercial applications.FEATURESType IC Rated: Suitable for direct contact with insulation, complying with UL 1598 standards for luminaires.ETL Listed: Certified for 2-hour fire resistance to meet and exceed strict fire UL 263 safety codes.Title 24 Compliance: Fully compliant with Title 24 energy efficiency standards.Air Tight Certification: ETL ASTM E283/E283M-19 certified airtight construction.Sound Insulation: Integrated non-combustible insulation acts as a sound barrier, minimizing sound transfer between floors.LED Quick Connector: Included for easy installation.Fixtures Sold Separately: Note that light fixtures are sold separately.MECHANICALDurable Construction: Made with die-formed #16 gauge galvanized steel construction.Fire-Rated Design: Certified up to 120 minutes fire-rated for L500 (floor-ceiling) & P500 (roof-ceiling) designs.Damp Location Suitability: Suitable for use in damp locations.Maximum Load: Supports up to 50.70 lbs.JUNCTIONPre-Wired Box: Features (5) ½” and (1) ¾” knockouts, plus (4) knockouts for 12/2 or 14/2 NM cable and ground wire.Conductor Capacity: Holds up to 8 #12 AWG conductors (4 in & 4 out).Mounting Frame: Constructed with #21 gauge die-formed galvanized steel.HOUSINGInstallation Ease: 3-1/2” deep 4” square housing fully assembled to the plaster frame for effortless installation.HANGER BARSAdjustable Hanger Bars: Pre-installed #21 gauge bars with True Nail for easy installation in various types of lumber and beams.Versatility: Adjustable length (14”-24”) can be repositioned 90°, featuring score lines for tool-free size reduction and an integral leveling flange for single-person installation.APPLICATIONSFire-Resistant Installation: Must be installed per International Building Code Section 714 guidelines to maintain up to a 2-hour ceiling fire rating.Ceiling Compatibility: Suitable for use in ceilings with thicknesses from 1/2” to 1-1/4”.Surface Mount Compatibility: Compatible with surface mount fixtures.Installation Guide: Refer to the installation sheet for detailed instructions.
