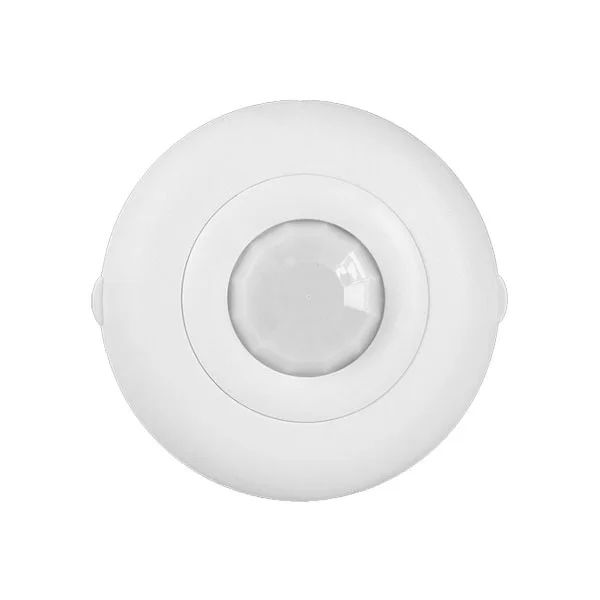

360° PIR Line Voltage Occupancy Ceiling Sensor

360° PIR line voltage occupancy ceiling sensor, white finish, 4 feet lead power cable, simple, fast installation, light level is adjustable, 2 years limited warranty.
Minimum order qty. of 10 pcs.
DESCRIPTION
The MPC-52V 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient. The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified time the lights are switched off.
FEATURES

360 Field of view, 800 sq.ft.
Passive Infrared Technology (PIR)
Time Delay is adjustable from 15 seconds (test mode) to 30 minutes
Simple, fast installation
Adjustable sensitivity settings
Light level is adjustable

SPECIFICATIONS

Incandescent: 800W-120VAC, 60H
Fluorescent: 800VA-120VAC                   1200VA-277VAC, 60HZ
LED: 150W
Motor: 1/4 HP,120VAC, 60HZ
Operating Temperature: 32°to 131°F (0°to 55°C)
Adjustable Light Level: 10FC—150FC
Adjustment Time Delay: 15 Sec. to 30 Min.
Sensitivity Adjustment: 50% or 100% (DIP switch 1)
Coverage: Up to 800 ft2
Lead Power Cable: 4 feet
Standards and Certifications: UL Listed
Warranty: 2 years
