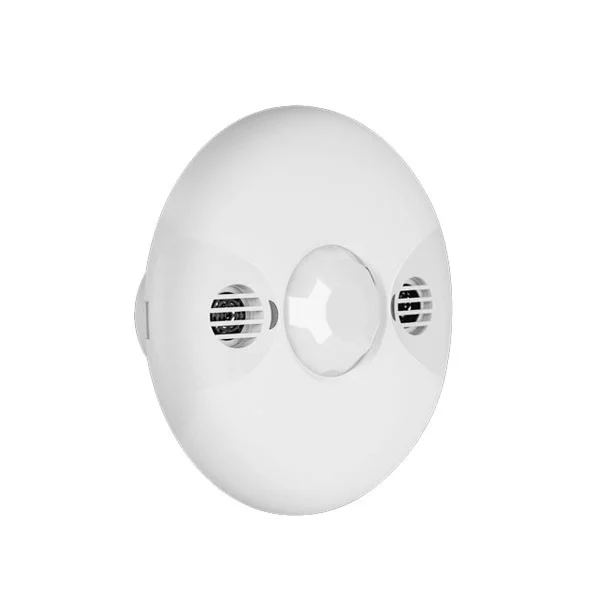

360° Dual Technology PIR Occupancy Ceiling Sensor

360° dual technology PIR occupancy ceiling sensor, 20mA current consumption, MPP-24 power pack power supply, light level is adjustable, 2 years limited warranty.
DESCRIPTION
The MDC-50L 360° Dual-Technology Occupancy Sensor combines advanced passive infrared (PIR) and ultrasonic technology into one unit. The combined technologies help to avoid false triggering. Selectable operation modes allow the sensor to turn back on and hold it on as long as either or both technologies detect occupancy. After no movement is detected for the selected time delay, the lights switch off. * The MDC-50L operated on 24V supplied by MMP-24 power pack (sold separately).
FEATURES

 Passive Infrared Technology(PIR)/Ultrasonic
360 ° field of view
1600sqft PIR coverage 1000sqft ultrasonic coverage
Time Delay is adjustable from 5 seconds to 30 minutes
LED compatible up to 150W
Adjustable sensitivity settings
Light level is adjustable.

SPECIFICATIONS

Voltage: 24VDC
Current Consumption: 20mA
Power Supply: MPP-24 Power Pack
Operating Temperature: 32°to 131°F (0°to 55°C)
Adjustment Time Delay: 5 Sec. to 30 Min.
Test Mode: delaytime is 5 sec. lasts 30 Min. at each time by setting
PIR Adjustment:50% or 100% (DIP switch 1)
Ultrasonic Adjustment: Min to Max (trimpot 1)
Light Level Adjustment: 100 Lux – daylight (trimpot 2)
PIR Coverage: 1200ft2
Ultrasonic Coverage: 1000ft2
Standards and Certifications: UL Listed
Warranty: 2 years

SPECIFICATIONS
The MDC-50L provides a 360° coverage pattern. The coverage shown represents walking motion at mounting height of 9 feet. For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease.
