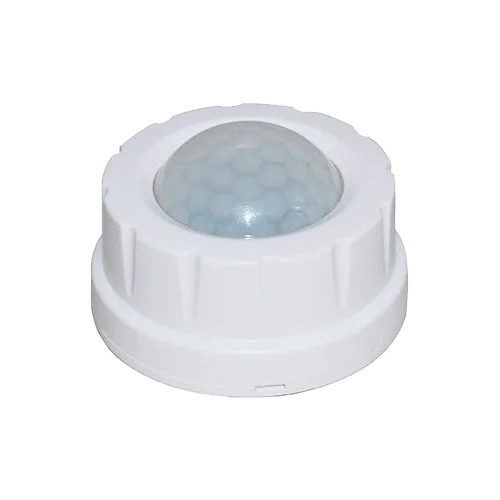

The ESL Vision ESL-OCCP-LV-01 is a compact 3-pin PIR occupancy sensor designed to add intelligent control to compatible Versa series fixtures. Built for reliable performance in demanding environments, it combines occupancy-based switching with configurable 0-10V dimming behavior. This sensor is an important control accessory in ESL Vision’s lineup for improving energy savings and lighting automation.
Key Features and Benefits
- PIR-based occupancy detection enables automatic on/off operation for energy-efficient lighting control
- Supports 0-10V dimming with adjustable high and low light levels for tailored illumination
- Programmable hold time and stand-by time allow custom response from 10 seconds up to 60 minutes
- Remote-programmable operation using the ESL-REM-100 infrared controller for fast field setup
- IP65 wet-rated housing supports use in moisture-prone and outdoor-adjacent applications
- Backed by a 5-year warranty for long-term confidence
Specifications
- Sensor Type: PIR Occupancy Sensor
- Input Power Supply: 12-24VDC
- Dimming Control Output: 0-10V max, 25mA sinking current
- Detection Coverage: 360° up to 26′ (8m) radius
- Maximum Mounting Height: 40′
- Remote Range: Up to 50′ indoors (no backlight)
- Operating Humidity: Up to 95% RH
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Ingress Protection: IP65
- Finish: White
Common Uses
Ideal for commercial and industrial spaces using compatible ESL Vision fixtures, including warehouses, parking structures, corridors, utility areas, and exterior covered zones where occupancy-based dimming and wet-rated reliability are required.
