2Ft. Linear 150 W 4th Generation LED High Bay

Linear LED High Bay 150 Watt Overview

The WM-LLHB4-150W Linear LED High Bay Fixture is the perfect solution for replacing conventional HID and fluorescent lighting systems in manufacturing, warehousing, and other expansive indoor spaces. Designed for easy surface mounting, this fixture is ideal for mounting heights ranging from 10 ft. to 40 ft. Invest in superior lighting that increases energy efficiency and creates a well-lit environment for productivity.

Electrical Specifications

• Voltage: 120~277VAC / 50~60 Hz
• Wattage: 150W
• Power Factor: >0.95
• Efficacy: 155LM/W

Housing Specifications

• Surge Protector Included
• Extruded Aluminum Housing
• Individual, Pure Aluminum Heat Sinks
• Operating Temperature: -4°F ~ 131°F
• Suitable for Damp Locations

Lighting Specifications

• Dimming: 0~10V Dimmable
• Lens: Polycarbonate
• Total Lumens: 23250LM (without frosted lens, per industry standards)
• Color Temperature: 4000K / 5000K
• Color Rendering Index: >80
• Wide Beam Angle

Warranty

Enjoy peace of mind with a 5-year warranty.

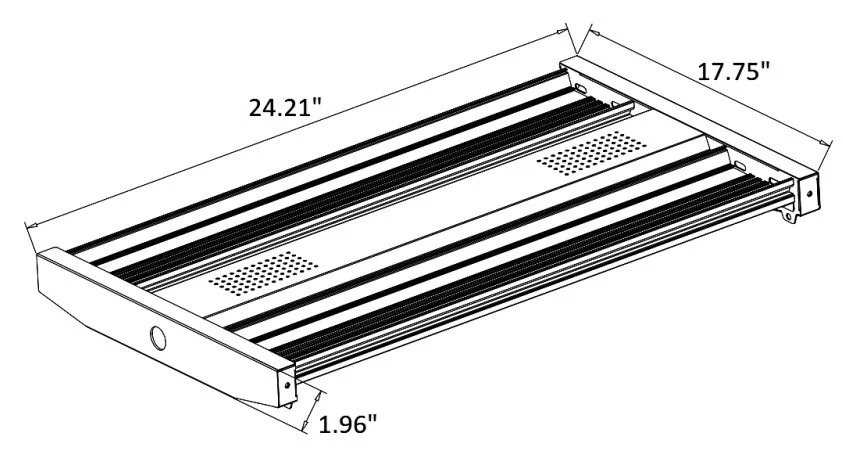

Dimensions

The fixture measures 24.21″(L) x 17.75″(W) x 1.96″(H).
