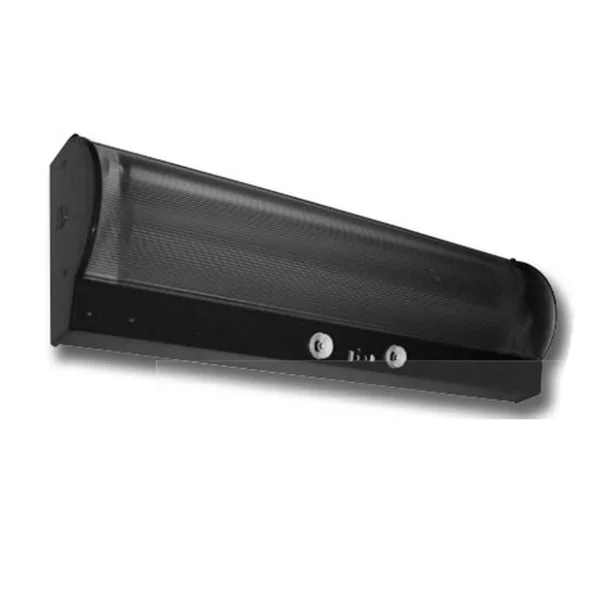

2Ft. Frosted Ultrasonic LED Stairwell Cavern Fixture, 2L or 3L

SERIES SUMMARY

FEATURES

• 2ft & 4ft Length Stairwell Fixture

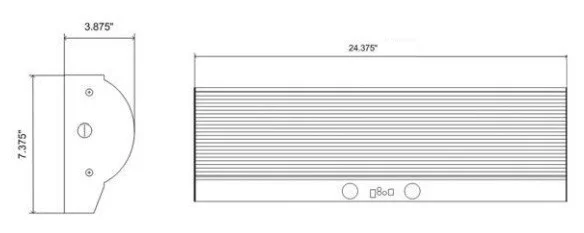

• 7.5″ Width to Cover Existing Footprints (No Painting)
• Wall or Ceiling Mount
• Two Housing Options:
  Cavern (CV)
  -.060″ Aluminum Body, Cast Aluminum End Plates,
  Post Paint Finish and Tamper Resistant Screw Option
  Cavern Lite (CVL)
  -.040″ Aluminum Body, Baked on Pre-Paint Enamel
• White Standard Finish with Optional Custom Colors
• Ultrasonic Sensor Option Provides for Maximum Sensing Range
• Impact Resistant Extruded Frosted Acrylic Lens
• High Efficacy – Up to 157 lm/W
• 3000K–5000K CCTs
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs
• 0–10V Dimmable Driver (100%–10%)
• 120–277V Universal Voltage
• Optional Integral Emergency Battery Backups
• ADA Compliant Luminaire
• 5 Year Warranty
• ETL Listed for Damp & Dry Location
• DesignLights Consortium Premium Qualified Luminaire

CAVERN HOUSING

• Education
• Healthcare
• Commercial Office
• Multifamily
• Hotel & Resort
• Storage Facility
• Retail
