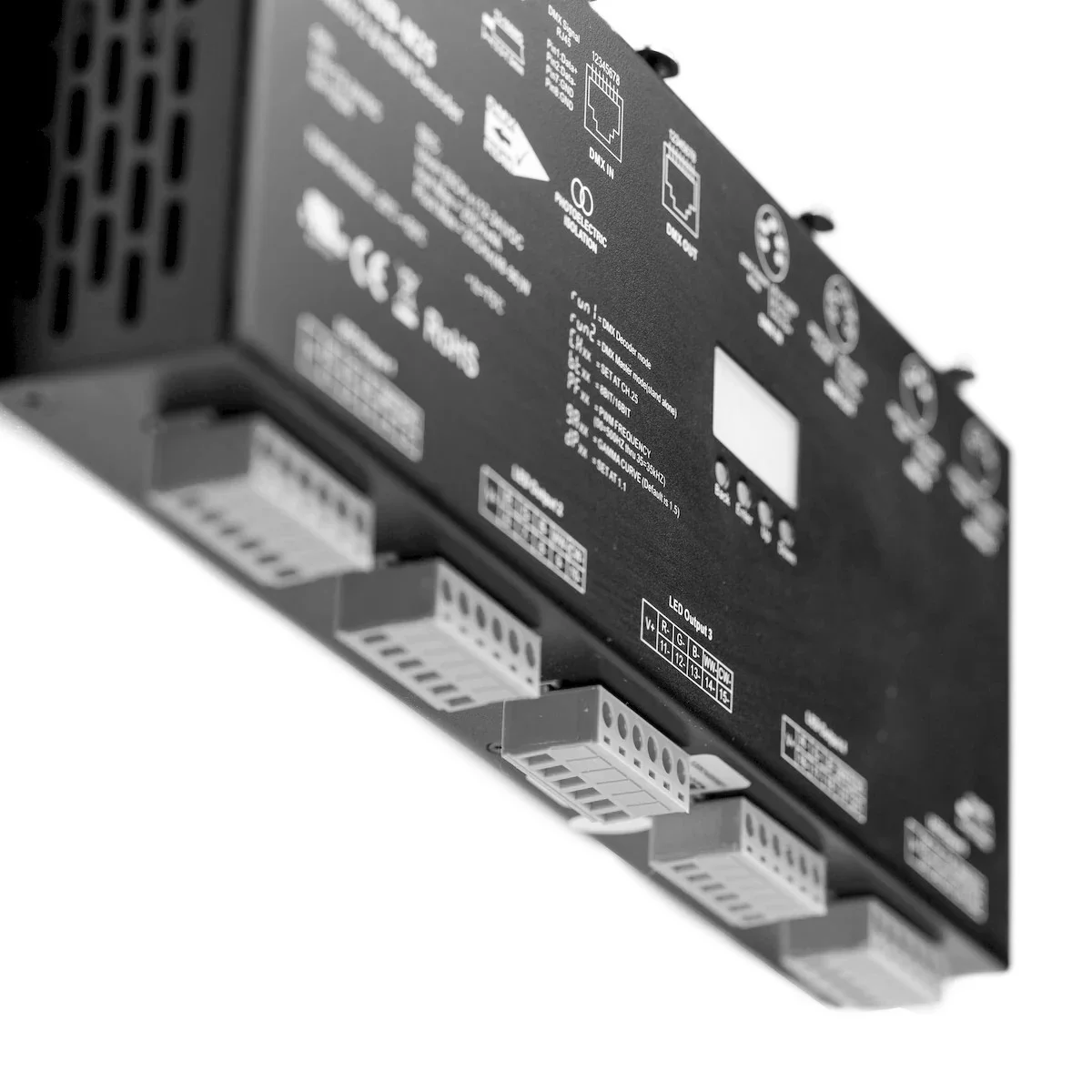

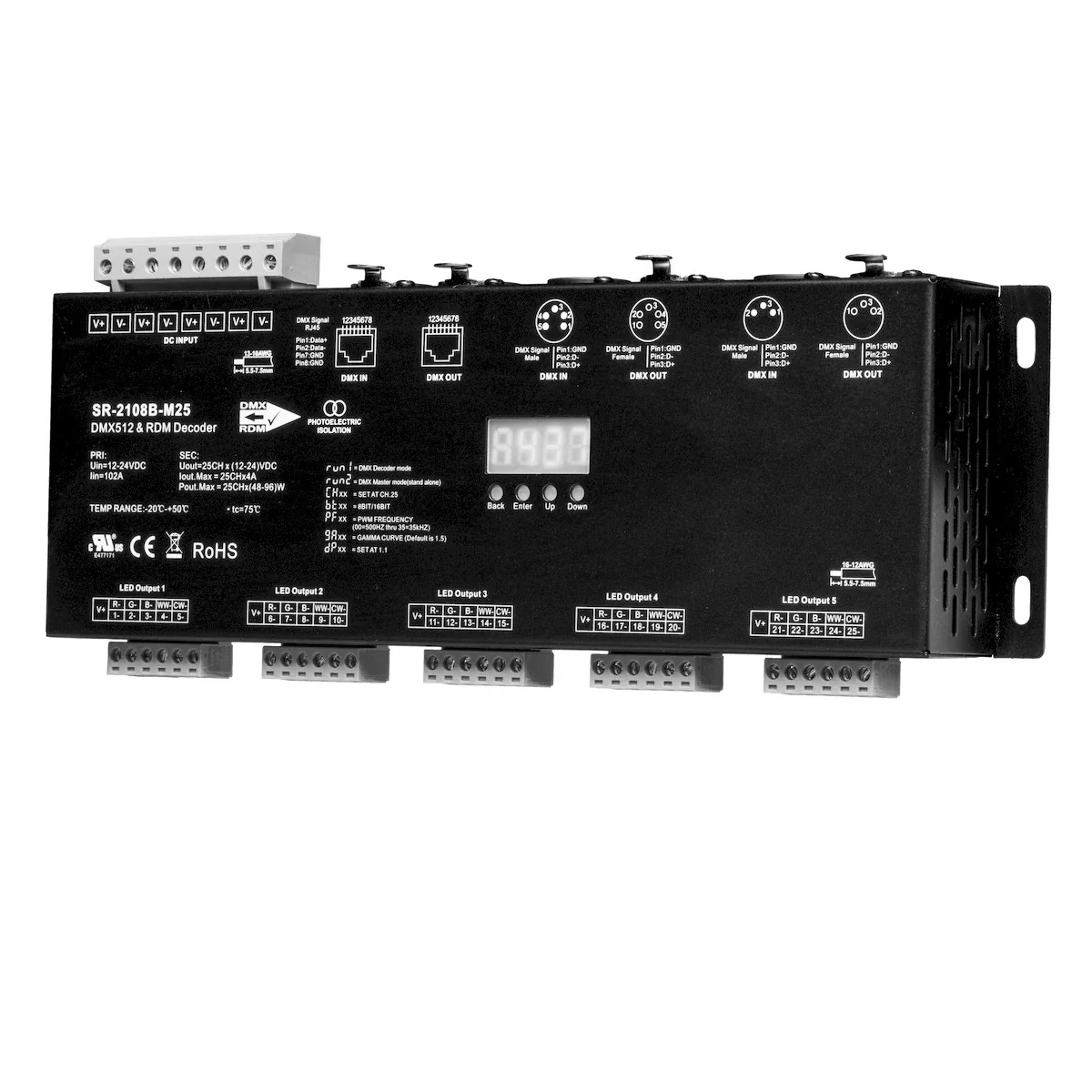

The 25-Channel DMX Decoder from Proluxe Lighting is an essential component for sophisticated lighting control systems. Designed to integrate seamlessly with DMX controllers, this decoder is a pivotal part of the Proluxe Lighting lineup, offering precise control over LED outputs for customizable lighting solutions.
Key Features and Benefits
- 25 total PWM output channels (5 ports x 5 channels)
- Selectable 8 Bit or 16 bit PWM output resolution ratio
- Multi-Group DMX RGBW channel control
- 0.1 – 9.9 Gamma value output dimming curve range
- Metal housing with digital display

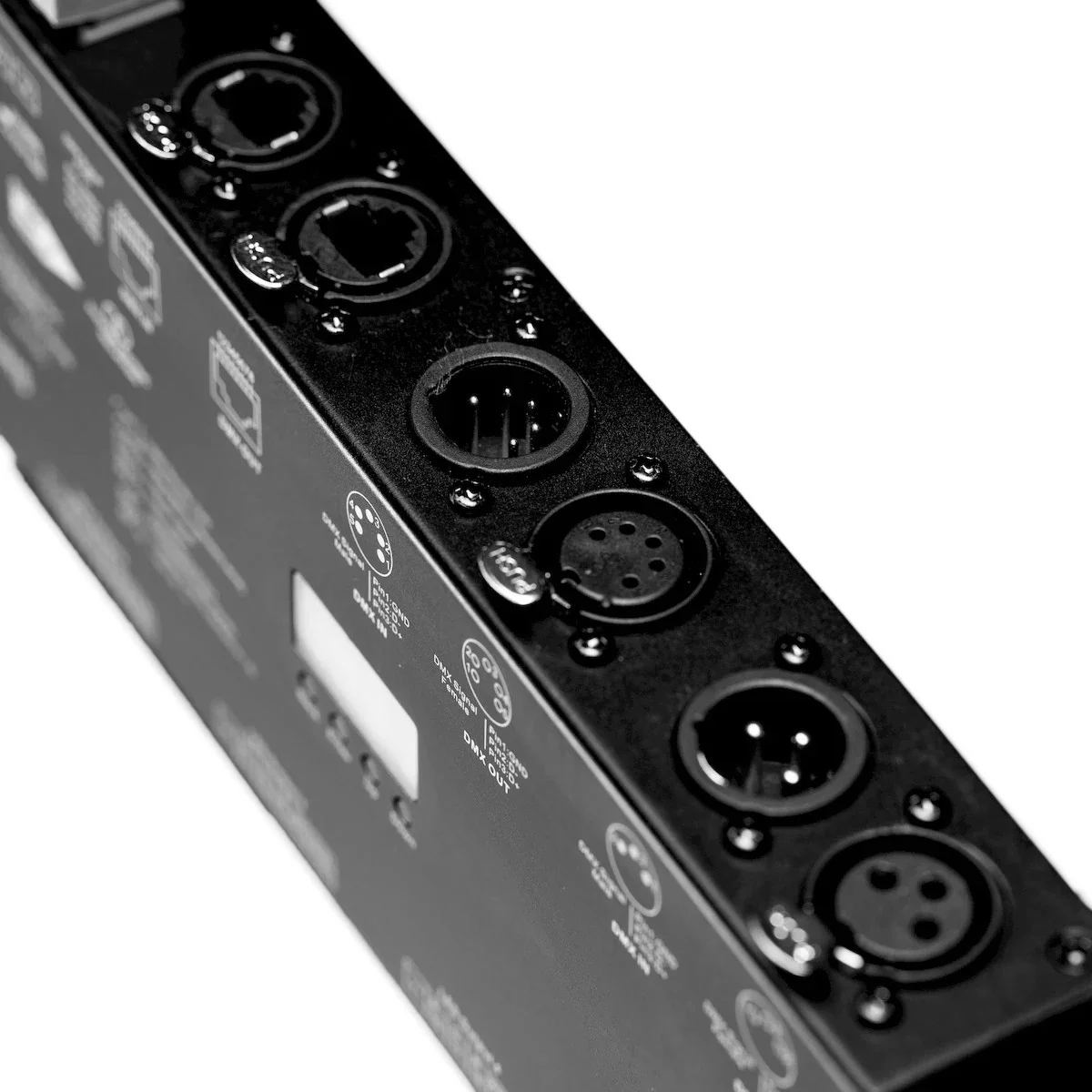

- Compatible with RJ45, XLR3, or XLR5 connections
- Requires master DMX controller and 12-24V DC input for operation
Specifications
- Input Voltage: 12 – 24V DC
- Output Current: 25 Channel 4A
- Max Load: 25 x 48-96W
- Input/Output Signal: DMX512/RDM
- Dimensions: 11.54″L x 3.62″W x 1.42″H
- Storage/Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Rating: Dry Location
Common Uses
Ideal for use in stage lighting, architectural lighting, and any setting requiring precise control of lighting elements.
