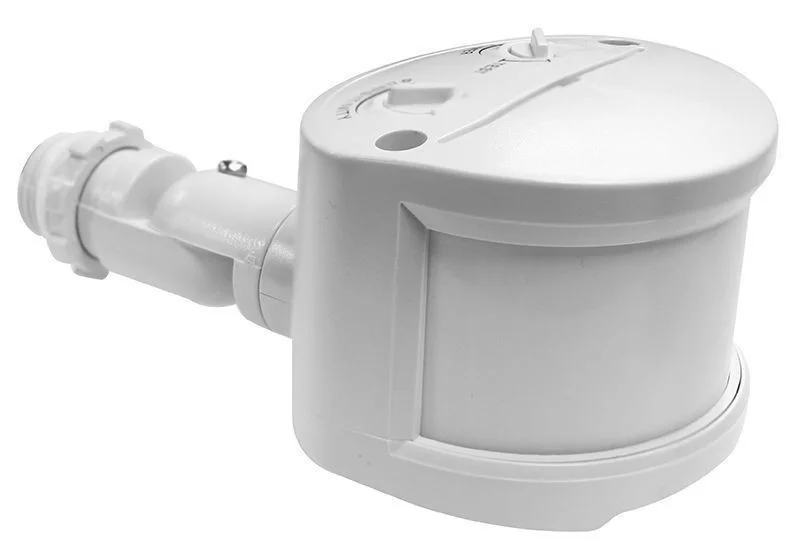

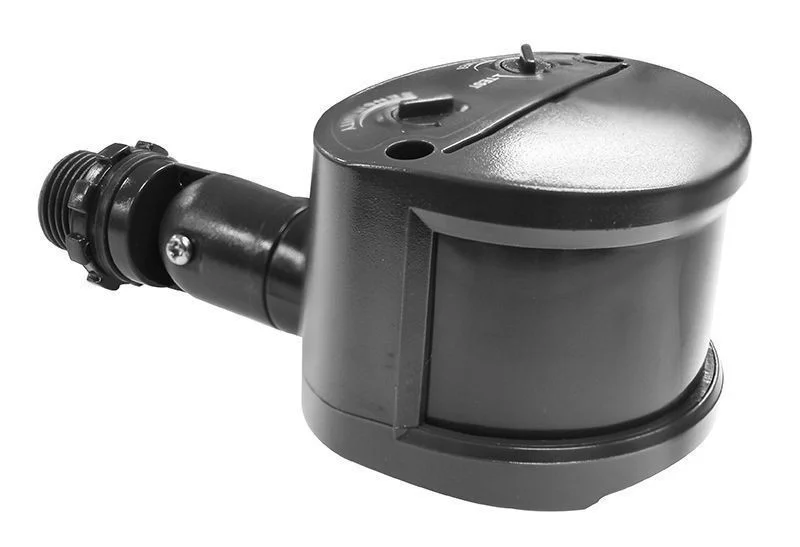

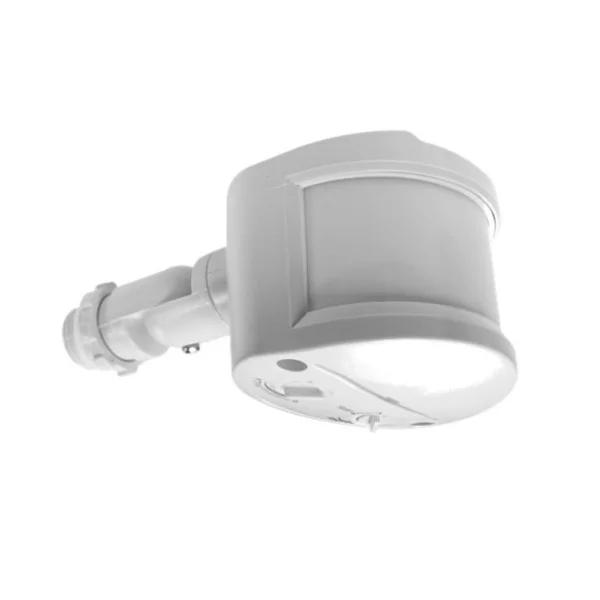

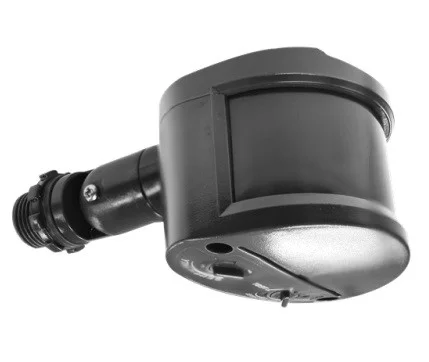

Enhance your outdoor safety and security with our Westgate Outdoor Motion Sensor, an ideal solution for walkways, parking lots, dock lighting, warehouses, garages, backyards, entrance ways, motels, and hotels.
ELECTRICAL SPECIFICATIONS
- Max Load: 200W
- Voltage: 120VAC 50/60Hz
- Ambient Light Setting: Night detect/Day detect: 5-50lux/35-400lux
HOUSING SPECIFICATIONS
- Durable Polycarbonate Construction
- Compatible with 1/2” Weatherproof Box Outlets using 1/2 NPT Threads
- Installation Height: 3.2-13ft.
- Operating Temperature: 14°F to 104°F
- Available in White and Bronze Finishes
- Wet Location Listed for Outdoor Use
TECHNICAL SPECIFICATIONS
- Detection Range: 180°
- Adjustable Detection Distance: 30 to 68ft.
- Time Setting Options: 1, 5, 20 minutes ±30%
- Dusk Time Settings: Off, 3hr, 6hr, Dusk to Dawn
- Detection Motion Speed: 2-4.9ft./s
- Operating Modes: Test, Auto, Override
