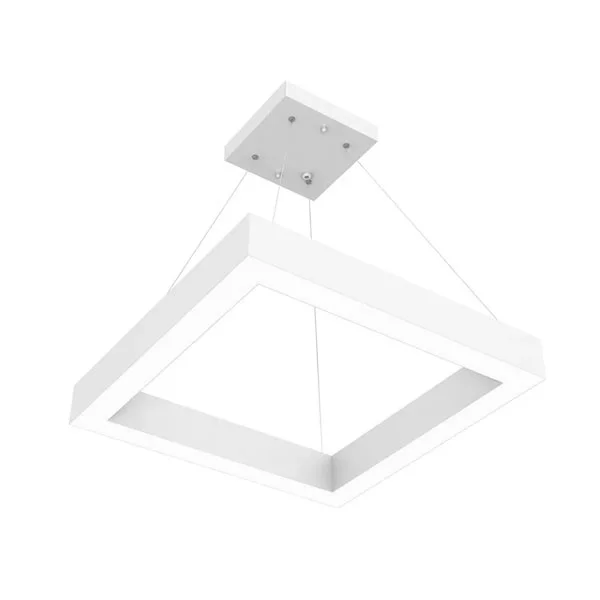

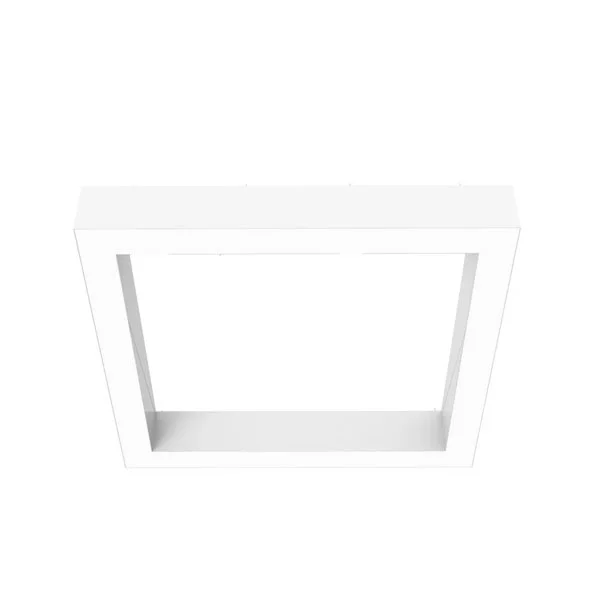

Westgate Manufacturing SCX Series LED Light – High Efficiency Lighting Solution
The Westgate Manufacturing SCX Series LED light is a versatile and energy-efficient lighting solution designed to optimize any indoor space. With selectable color temperatures and adjustable lumen outputs, it is perfect for a wide range of applications, from offices and hotels to corridors and libraries.
Key Features and Benefits
- Selectable color temperatures: 3000K, 3500K, 4000K, 5000K
- Adjustable lumen outputs: 4400LM, 6600LM, 8800LM
- High efficacy: 110LM/W
- Long lifespan: 50,000 hours
- Compatible with 120-277VAC 50/60Hz power sources
Technical Specifications
- Voltage: 120-277VAC 50/60Hz
- Wattage: 40W, 60W, 80W
- LPW: 110LM/W
- Total Lumens: 4400LM, 6600LM, 8800LM
- Color Rendering Index (CRI): ≥ 80
- Rated Life: 50,000 hours
- Beam Angle: 104.8° (H) x 100.5° (V)
- Operating Temperature: -13°F to 104°F
- IP Rating: IP54 for damp locations
- Mounting Options: Surface, Suspended, Recessed
- Aluminum housing with matte white finish and opal polycarbonate lens
- Dimmable: 0-10V Dimming
Common Uses
This LED light is ideal for a variety of indoor spaces including:
- Offices and conference rooms
- Hotels and lobbies
- Corridors and hallways
- Libraries and educational facilities
- Saloons and restaurants
