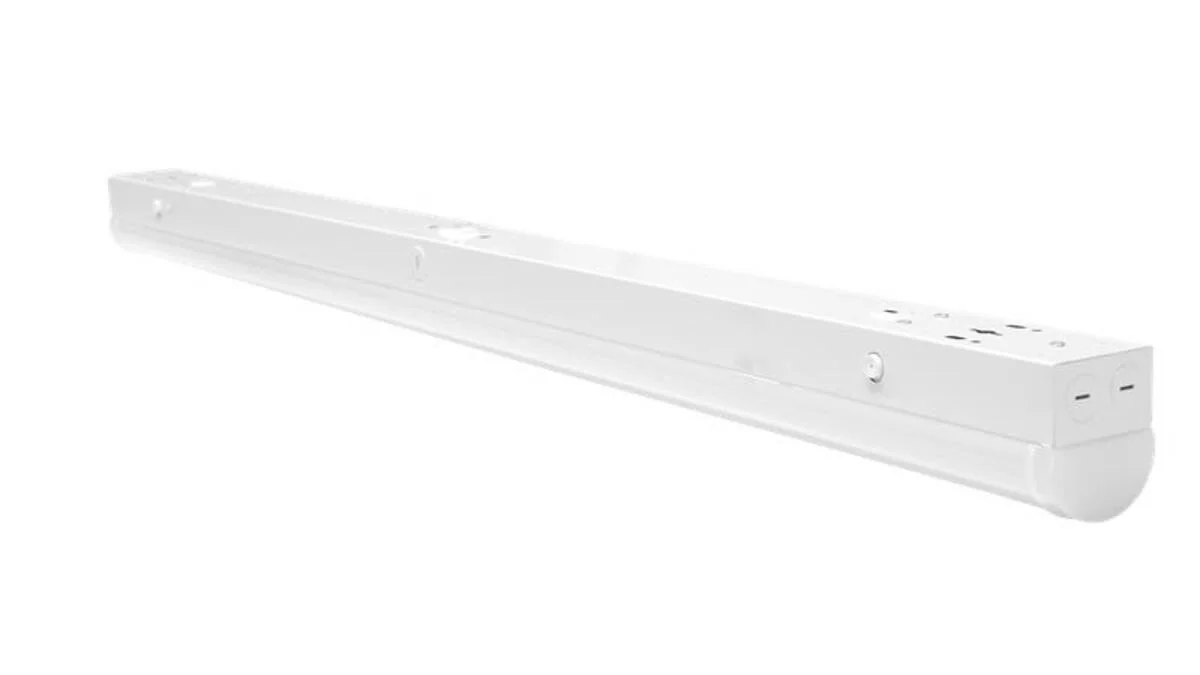

2-Foot Linear Strip, Selectable Power Levels, Switch-Selectable CCT, Dimming

Introducing the TPZ-LS2-25WPCS Series, a 2-foot linear strip LED designed for versatility and efficiency. This series is a key offering in the Southwire lineup, providing a compact, flexible lighting solution for various applications.

Key Features and Benefits

• Selectable power levels: 15W, 20W, 25W
• Switch-selectable color temperatures: 3500K, 4000K, 5000K
• Dimming capability: 0-10V dims down to ~10%
• High efficacy: up to 150 lm/W
• L70 lifetime of 50,000 hours
• IK08 impact rating
• DLC-listed for ambient applications
• Tool-free wiring with press-to-release buttons

Specifications

• Input Voltage: 120–277 V AC, 50/60 Hz
• CRI: ~80
• Operating Temperature: –20°C to +45°C (–4°F to 113°F)
• Power Factor ≥0.9, THD ≤20%

Common Uses

Ideal for lower-ceiling commercial spaces, utility rooms, corridors, and offices where a compact, efficient, color/temp-flexible, and dimmable LED solution is preferred over T8 fluorescents.
