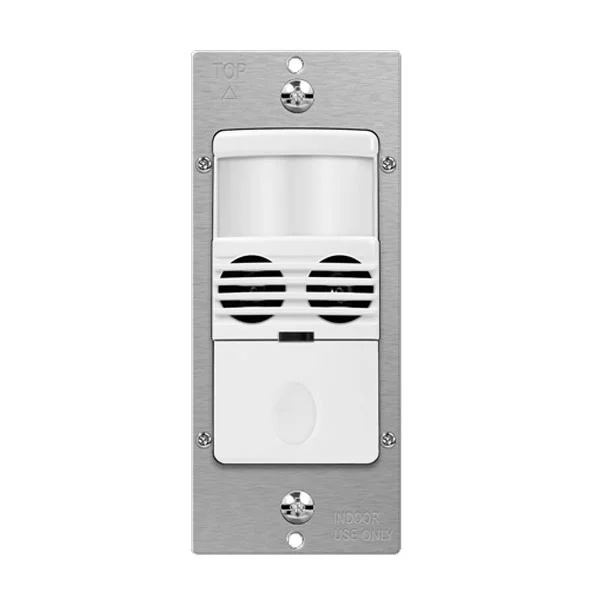

180° Dual-Technology Occupancy/Vacancy Motion Sensor Wall Switch

180° dual-technology occupancy/vacancy motion sensor wall switch, neutral wire required, single pole, white finish, 120/277VAC,50/60Hz voltage.
DESCRIPTION
This Multi-Technology Wall Switch Sensor combine advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies helps eliminate false triggering even in diffi cult applications. Selectable operating modes allow the sensor to turn a load on, and hold it on as long as either or both technologies detect occupancy. After no movement is detected for the selected time delay, the lights switch off. A “walk-through” mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds following an occupancy detection.
This sensor also contains a light level sensor. If adequate daylight is present, the sensor holds the load OFF until light levels drop, even if the area is occupied.
FEATURES

Integrated PIR and Ultrasonic sensor technology to detect very fi ne motion and provide accurate motion sensing
Allows to choose triggering when both technologies detect motion or when only PIR detects motion
Less false trigger, fast ON/OFF; commercial grade sensor for closet, garage, hotels, meeting room, work places
Adjustable timeout from 15 seconds to 30 minutes; WalkThrough mode: 3 minutes if no activity after fi rst 30 seconds

SPECIFICATIONS

Voltage: 120/277VAC,50/60HzLoad Requirments:
Incandescent: 800W-120VAC,50/60Hz
Fluorescent: 800VA-120VAC                   1600VA-277VAC
Resistive: 800W-120VAC,50/60Hz
Motor: 1/4HP-120VAC,50/60Hz
Adjustment Time Delay: 5 Sec to 30 Mins
Walk-Through Mode: 3 minutes if no activity after 30 sec.
Test Mode: 5 sec. at initial power up or DIP switch reset
PIR Adjust: High or Low (DIP switch)
Ultrasonic Adjust: Minimum to Maximum (trimpot)
Light Level Adjust: 100 Lux – daylight(trimpot)
Operating Temperature: 32° F – 131° F
