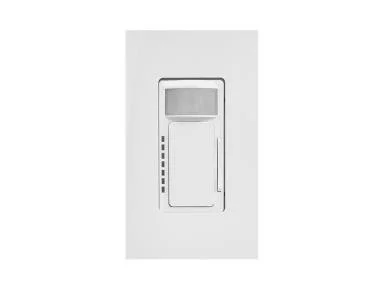

Introducing the MaxLite 1-Button Bluetooth Mesh PIR Wall Dimmer Controller, a versatile component in the c-Max Network Partners series, designed to provide seamless lighting control through Bluetooth mesh technology.
Key Features and Benefits
- Wirelessly communicates with Bluetooth mesh network devices for light level control.
- Functions as a dimmer to override pre-configured occupancy sensor settings.
- Easy commissioning with Silvair App available on iOS and Android.
- Local Bluetooth network operation without a gateway.
- PIR detection suitable for areas with a clear line of sight.
- LED status indicator light for easy monitoring.
- Standard decora style opening for multi-gang installations.
- 5 Year Warranty for reliable usage.
Specifications
- Product Type: PIR Occ/Vac Dimmer Wall Controller
- Input Voltage: 120-277VAC 50/60Hz
- Power Consumption: Max. 1.5W
- Neutral Required: Yes
- Mounting: Standard wall box
- Max Detection Range: 40 ft @ 4ft mounting height
- Max Bluetooth Range: 30ft (9.14m)
- Operating Temperature: 32°F to 130°F / 0°C to 55°C
- Relative Humidity: 90-95% non-condensing at 30°C
- Certification: UL Listed, ioXt Certified
- Environment: Indoor Use Only
- Color: White
Common Uses
Ideal for offices, hospitals, schools, warehouses, industrial and retail settings, providing efficient lighting control solutions.
